High Quality SSTP Cat7 Patch Cord Cable with ETL Certified

Product Description

High Quality SSTP Cat7 Patch Cord Cable with ETL Certified
SSTP Cat7 patch cable with UL listed
1. Cat5e/Cat6/Cat7 Patch cable
2. Passed Fluke test
3. UL CE ROHS ISO9001 certification
4. Testing to 500MHz;

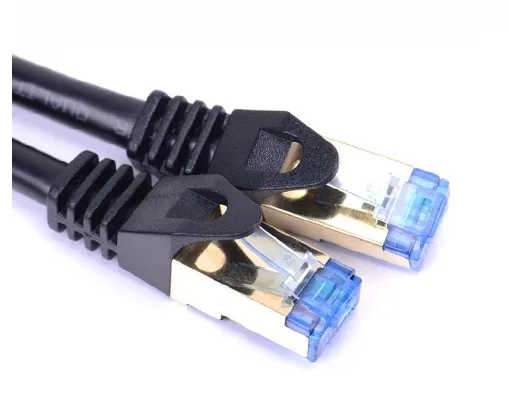

RJ45 cat7 network sstp patch cord cable with plugs
Description
Cat7 fixed length network cables are the perfect combination of value and performance. Available in a large assortment of colors and lengths, we have a cable to fit every situation. Each cable is made of 24AWG, 26AWG pure copper listed pair conduits with 50u" gold plated contacts (short body). Most budget cables skimp with 10u". Each cable features color matched, snagless, strain relief boots.
Feature or Specification
1. The cable connects all the hardware destinations on a Local area network.
2. With snagless molded strain relief, this cable's rj45 tap is protected from being damaged durning installation
3.7 copper wires Ø 0.20mm (0.008''), 24 awg
4. It features 50 micro gold plated rj45 (male to male) connectors which ensure clear transmission.
5. Features: Gold plated connectors
6. Compliance Standards: EIA/TIA-56B catagory 6
7. Connector(s): 1× Rj-45 -male
8. Jacket: Polyvinylchloride(PVC), Polyethylene(PE) or low smoke zero halogen(LSZH)
9. CE, ROHS compliant
Electrical Characteristic:
1.0-100.0MHz Impedance (ohms): 100 +/- 15
1.0-350.0MHz Delay Skew (ns/100m): <=45
Pair-to-Ground Capacitance Unbalance (pF/100m): <=330
Max. Conductor DC Resistance 20 degree(ohms/km): 93.8
Resistance Unbalance (%): <=5
Working Temperature: -5° C~+50° C
Storage Temperature: -20° C~+60° C

Product:	Patch cord
Category:	Cat 5e, Cat6, Cat 6a, Cat7
Shirleding:	UTP, FTP, SFTP, SSTP
Connector	RJ 45 connector
Conductor	Bare copper, CCA ( copper clad alunimum) or CCS ( copper clad steel)
Guage	22AWG, 24AWG, 26AWG, 28AWG, 30AWG
Insulation	HDPE
Shirleding	Aluminum foil and Braiding
Jacket	PVC, LSZH.
Color	Black, white, grey, blue, red, orange ,yellow, purple,green ,transparent ^
OD	5.0mm, 5.2mm, 5.4mm, 5.7mm ...
Length	0.25m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 80m,100m,etc
Compliance	ATC, UL, ETL, CE, RoHS, REACH
Application	1.PC with Switch, Hub, ADSL, Router, Wall Socket, Network Module Plate,etc. 2.Connect 2 XBOX consoles for multi player gaming 3.ADSL, Modem with Hub or Router
Compatibility	100 Base-T4 100 Base-TX 100VG-AnyLAN 1000 Base-T(Gigabit Ethernet) 155 Mbps ATM 622 Mbps ATM
Package	Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized
ELECTRONICS
QC	100% open and short test
Voltage	DC300V 5M ohm/10ms
Insulation Resistance	10M ohm min
Contact Resistance	3 max
Working Temperature	-25C-80C

---
