Customized High Precision Paper Edge Protector Making Machine

Product Description

Product parameters

Model	SANPPL-120G
V protector size (mm)	25-120 (can be symmetrical and asymmetrical)
Thickness (mm)	2.5-10
Applicable inner paper	360-600g/m2 bobbin fiber paper, fluting paper or corrugating medium paper
Applicable surface paper	175-250gsm kraft paper
Core diameter of paper roll	3"(76mm) ( 4"or other size must be confirmed when making order)
Max. quantity of Layer	13
Max. speed	50m/min for length not smaller than 800mm.

Paper protector / edge protector / paper edge / edge board / corner board / angle board / edge board protectors / edge protection board are the right solution to prevent your products from damage during handling, storage and transportation.

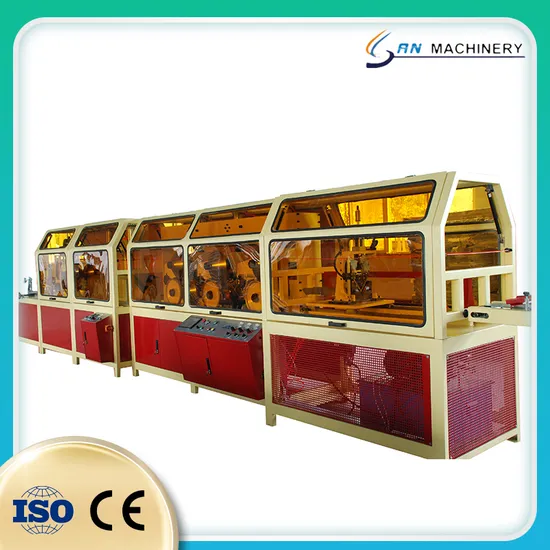

SANPPL-120G is one paper edge protector machine with speed of 50m/min. This paper corner board machinery is only for L shaped paper edge protector production. Through changing tools, it can produce U profile protector and flatboard.
Product flow
Other products
Main features
1)Suspended paper stand with buffering effect, replace the paper rolls with hoist, no need to stop the machine.
2)Automatic controller for glue temperature ensures the good quality and high speed even in low temperature.
3)Heating system for production line, makes the protectors stronger.
4)Forming wheels adopt box-type suspended structure, easy to change molds.
5)Touch screen and human-machine interface of servo system, the operation is more humanized; the operation of adjust air cylinder is more convenient.
6)Automatic alarm, malfunction prompt, easy to adjust and maintain.
7)Hydraulic cutting system, maximum frequency is 90 times/minute.
8)Automatic stacking system with counter, no need manual counting.
9)Through changing molds, it can produce U profile protector and flat board.
Company visit
Our certificate
Company Profile
San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.
Factory workshop
Packing & Delivery
FAQ:
Q1: What's your warranty policy?
A1: For the machine,we offer one year warranty.If any quality problems occurred under normal condition during this period ,we will take on the costs of maintenance and replacement and other related cost.
Q2: How to find the matching accessories or wearing parts of the machine?
A2: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with favorable price if it is out of the warranty.
Q3: Do you have technical instruction if I buy your product?
A3: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.
Q4: What is your overseas service?
A4: We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
Q5: How to get raw material or auxiliary material for the machine?
A5: Our company has over 10 years experience in this industry, we have accumulated various contact information of upstream & downstream firms in fields of raw material,auxiliary material and package for the products. We believe that our professional team can always offer you the best solutions.

---
