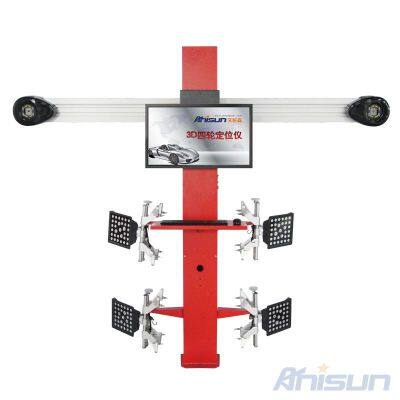

Anisun New economical wheel alignment instrument
Technical Parameter
Specification
| Item
|
Accuracy
| Range
| Total Range
|
Front Wheel
| Camber
| ±0.02°
| ±8°
| ±8°
|
Caster Angle
| ±0.05°
| ±10°
| ±10°
|
Kingpin Caster Angle
| ±0.02°
| ±19°
| ±19°
|
Toe
| ±0.02°
| ±4°
| ±8°
|
Rear Wheel
| Rear Axle Offset
| ±0.02°
| ±2°
| ±4°
|
Maximum steering Angle
| ±0.08°
| ±25°
| ±45°
|
Thrust-angle
| ±0.02°
| ±2°
| ±4°
|
Track Width Difference
| ±0.03°
| ±2°
| ±8°
|
Front Set Back
| ±0.02°
| ±2°
| ±4°
|
Rear Set Back
| ±0.02°
| ±2°
| ±4°
|
Track Width
| ±0.64cm(0.25cm)
| | Wheel Base
| ±0.64cm(0.25cm)
| <533cm(210in)
|
Size: 2890mm long * 350mm wide * 460mm high Volume: 0.47m ³ Gross weight: 80kg Net weight: 67kg
Size: 730mm long * 580mm wide * 1080mm high Volume: 0.46m ³ Gross weight: 70kg Net weight: 28kg
Product Feature
1. Windows 8 Chinese operating system, the latest version of 3D positioning software, standard Chinese navigation menu interface, easy to learn.
2. There is no electronic component on the target disk, no need for wire harness transmission, no need for battery, no need for data transmission through Bluetooth infrared, etc., which greatly reduces the failure rate of the product.
3. According to the requirements of high-grade cars, the measurement is more accurate and the repeatability measurement error reaches the international standard.
4. Industrial-grade host, faster response, more accurate measurement and longer service life.
5. The equipment is calibrated at one time when leaving the factory, and can be used after installation on site without being affected by the site.
6. 8 million industrial HD cameras and 32-inch HD TV enable faster measurement, more accurate data and clearer images.
7. The model database is upgraded online with one click, and the background server regularly adds the latest model, saving you the time to manually add and update, which is convenient and fast.
8. (Optional) The data report is generated online with one key, and is directly scanned and shared, saving the printer time and waste paper.
9. (Optional) It can be equipped with auxiliary viewing camera and auxiliary viewing camera to prevent the operator from bumping the vehicle due to the blind area of vision.
10. Multi-language selection, applicable to 26 countries and regions.
11.The menu options have detailed function description, clear identification and bright color, which can avoid user operation errors.
FAQQ: Why should I choose Anisun?
A: Twenty year manufacturer, wheel aligner, tyre changer, wheel balancer, car lift and other car maintenance equipment, and all products were made of high-quality parts,all of our product are tested well before delivery,Low prices with high quality revenue producing products.The best customer service.Quick reply within 24 hours and more.
Q: How safe are Anisun products?
A: Our products have passed CE certificate. Warranty time is 12 months, and if there is anything wrong about our products when exceed 12 months, just contact us. We will send the components to you freely. or we will help you online directly.
Q: Should I keep repair and replacement parts in stock?
A: Yes,most all commonly required repair and replacement parts should always keep in stock.
Q: Are Anisun products designed for commercial use?
A: All of our products can be used in commercial applications without any problems.
Q: Do you offer any custom designs?
A: Yes,Anisun provide OEM/ODM services to top range partners
>>
