Seven Generation Ultra Thin Regular Pads with Wings Machine

Product Description

We cordially invite you to visit our booth at the Tissue-Me Exhibition 2023,
join us as we shape the future of the hygiene sector together

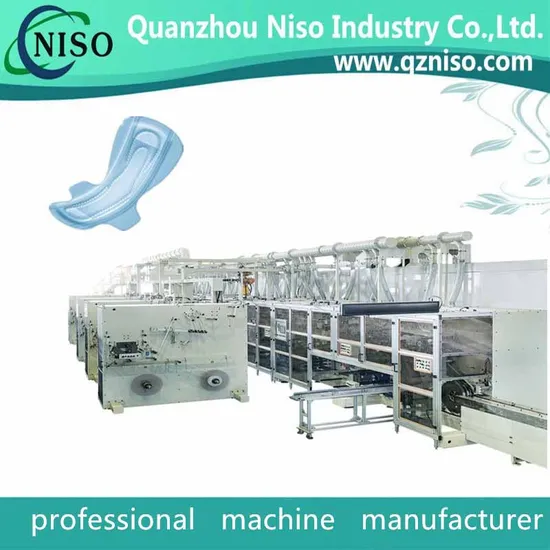

Seven Generation Ultra Thin Regular Pads With Wings machine
the video of the sanitary napkin machine is:
https://qzniso.en.made-in-china.com

Part 1 Parameter
Model	YC-HY400	YC-HY600-FC	YC-HY600-HSV	YC-HY800-SV
Name	Economic type	Frequency type	Semi servo type	Full servo type
Automaticly	Semi-auto	Full auto	Full auto	Full auto
Product size	2 sizes classic thick & ultra thin wing & straight	2 sizes classic thick & ultra thin wing & straight	2 sizes classic thick & ultra thin wing & straight	2 sizes classic thick & ultra thin wing & straight
Design speed	500pcs/min	800pcs/min	800pcs/min	1000pcs/min
Production speed	300-400pcs/min	500-600pcs/min	500-600pcs/min	700-800pcs/min
Power	150KW	200 KW	200 KW	250KW
Power source	380V, 50HZ, 3 phase 5 wire	380V, 50HZ, 3 phase 6 wire	380V, 50HZ, 3 phase 7 wire	380V, 50HZ, 3 phase 8 wire
Efficiency	>=85%	>=88%	>=88%	>=88%
Rejection rate	<= 3%	<= 2%	<= 2%	<= 2%
Machine weight	45 Ton	60 Ton	60 Ton	60 Ton
Machine size	22m * 3m * 3m	28m * 3m * 3m	28m * 3m * 3m	28m * 3m * 3m
Operating size	25m * 7m * 5m	33m * 7m * 5m	33m * 7m * 5m	33m * 7m * 5m
Air pressure	0.6-0.8MPA	0.6-0.8MPA	0.6-0.8MPA	0.6-0.8MPA
Machine color	Customlized	Customlized	Customlized	Customlized
Machine direction	Customlized	Customlized	Customlized	Customlized
Part 2 Electric part
PLC	No have	Mitsubishi / Simense	Mitsubishi / Simense	Mitsubishi / Simense
Touch screen	×	Mitsubishi / Simense	Mitsubishi / Simense	Mitsubishi / Simense
Unwinding type	×	Initiative	Initiative	Initiative
Materials shaft stand	Machanical shaft stand	Pneumatic shaft stand	Pneumatic shaft stand	Pneumatic shaft stand
Tension control system	×	√	√	√
Unwinding motor	×	Invertor motor	Invertor motor	Servo motor
Web guider	Manual	Digital & Auto	Digital & Auto	Digital & Auto
Driving system	One main motor	Three main motors	Servo motor independently control	Servo motor independently control
Detective	Manual	Auto	Auto	Auto
Materials splicing	Manual	Auto	Auto	Auto
Safety door	Back	Back & Front	Back & Front	Back & Front
Flat belts	China	Switzerland	Switzerland	Switzerland
Timing belts	China	USA	USA	USA
Bearing	China	Japan	Japan	Japan

Why Choose Our Machine?
1. the whole machine is drived by servo motors, which can control the drive system more accurately.

2. three folding easy packing

3. Unwinding is controlled by constant tension

4. Can change raw material without reducing the speed

5. Equipped with pneumatic shaft, easy to change raw material

6. Equipped with automatic detecting & rejecting system

7. All the spare and accessory parts are processed by CNC machine

8. Web guiders

9. PLC control system

10. the machine devided into two floors
How to Buy Our Machine?


Our Plant

Frequently Asked Question
Q:Are you a machine manufacture or trading company?
A: We are a machine manufacture with 13 years history with making baby diaper machine, adult diaper machine, pull up diaper machine, sanitary napkin machine and underpad machine.

Q: What is the delivery time for a set machine?
A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every aspect.

Q: What is your term of payment?
A:T/T is our first choice, L/C at sight is Ok as well.

Q: How long is the warranty period?
A: one year after the testing finished at the buyer's workshop.

Q: Will you send the engineer to install machine and train our workers in our factory
A: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side.

Q: How long can I get the machine?
we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine.

Q: Can I buy raw material from your company?
A: yes. we have a trading company, which cooperate with us for many years. we can help you to find raw material.
Q: How long can I get the machine?
we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine.

Q: Can I buy raw material from your company?
A: yes. we have a trading company, which cooperate with us for many years. we can help you to find raw material.

---
