Product Description
Product Description

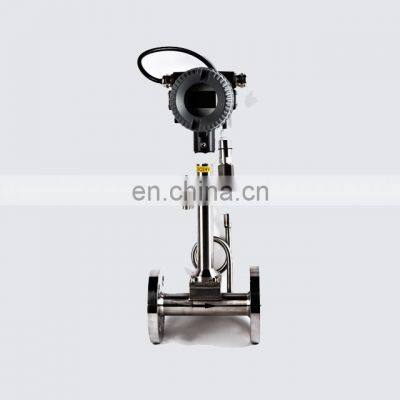

Low price feed water vortex flow meter/ solvents flowmeter for lubricating o ItemVortex flow meterModelTEMGBApplication range(1)Gas; (2)Liquid; (3)SteamPipe sizeDN15-DN300ConnectionFlange or Wafer connectionMeasured ValueFlow Rate, Volume flowCompact version converterN Type: Pulse output without local displayA Type: 4-20mA Output without local displayB Type: Local Display; Lithium Battery Power; No Output (Battery Part No.: ER26500)C Type:Local Display; 24VDC Power;4-20mA Output;Optional Function: (1) Backup Power Supply: Lithium Battery (2) Modbus RS485 (3) Pulse OutputAccuracyFor Liquid:1.0% of rate For Gas and Steam:1.5% of ratePressure1bar/14.5 psigTemperature+10...+30°C/+50...+86°FElectrical conductivity≥300μS/cmMeasurement RatioStandard–10:1Flange materialSS304Sensor materialSS304Converter HousingStandard: polyurethane coated die-cast aluminum DimensionsDNL(mm)H(mm)D(mm)ClampTypeFlangeTypeClampTypeFlangeTypeClampTypeFlangeTypeDN15701803352401515DN20701803352402020DN25702003352402525DN40702003352474040DN50802003352525050DN65802003452606565DN801002003552688080DN100120235365280100100DN125140270382290125125DN150160300395305150150DN200 360 332 200DN250 400 355 250DN300 400 380 300 Flow range table Normal size(mm)Flow Range(m3/h)LiquidGasSteamDN150.8~127.2~6012~120DN202~3018-18030~300DN253~4520-30050~500DN406.5~8454~54084~840DN5010~13070~700120~1200DN6520~200120~1200200~2000DN8032~320200~2000320~3200DN10045~450240~2400440~4400DN12590~900480~4800800~8000DN15012~1200740~74001200~12000DN20015~15001000~100001780~17800 Installation WayCompany InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you. Contact us
>>
