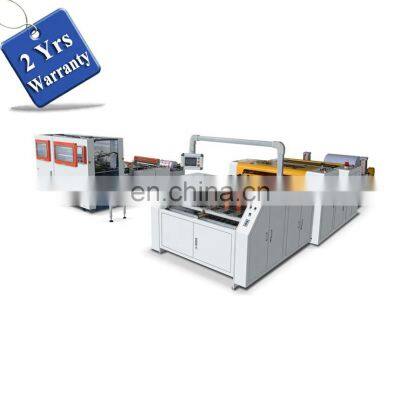

UTHQA4 Automatic A4 Paper Cross Cutting Machine, A3 Copy Ream Papers Packaging Machine
Videos
Video demonstration only for reference
Video 01: /watch?v=6WmZfTaPn8g
Video 02: /watch?v=cgERYrvj8rw
Product Description
Description: Themachine is professionally designed to produce A4 sheets. It can be equipped with different unwinding paper rolls (1 roll, 2rolls, or 4 rolls) to achieve different cutting production.
Features:
1, Pneumatic paper rollloading system for easy operation and convenience
2, Vertical and horizontal cutting in just one pass
3, Servo motor and PLC control equipped for easy adjustment and high cutting precision.
4, The machine features frequency converter timing, automatic counting, alarming system, magnetic powder tension controller, waste collecting system and automatic stacking.
Parameters
Max unwinding diameter
| φ1100mm
|
Paper Thickness
| 40~500GSM
|
Max cutting width
| 1150mm
|
Cutting length
| 20-1000mm
|
Cutting speed
| 10-150times/min
|
Cutting precision
| ±0.2mm
|
Power
| 22KW, AC380V/220V, 50HZ
|
Weight
| 3500KG
|
optional device
| 1) 1 roll,2roll or 4 rolls
|
2) paper stacker
|
3) round cutter for slitting
|
4)automatic belt delivery to packing unit
|
Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
