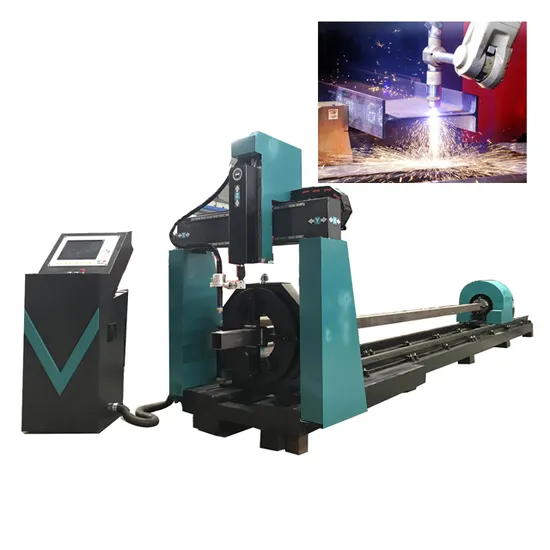

Extra CNC Plasma Pipe and Profile Cutting Machine / H Beam / Shape Steel / Square Tube Bevel Cutter

Product Description

If you fabricate structural steel, Our 8 axis plasma cutting machine will make your operation more efficient. That's what it's doing for a variety of companies who operate outside the traditional building industry.Whether you call it a beam, a channel, a brace or a bracket . . . whether you make it from carbon steel, or stainless steel . . . Our 8 axis plasma cutting machine will help you make it at the lowest total cost and with unrivaled quality.
Applicable Materials Of H Beam Cutting Machine
Cutting stainless steel, carbon steel, mild steel, iron. Cutting round pipe , square pipe, angle steel, steel channels, H beam, H- beam, H steel etc.
Applicable Industries Of H beam
metal fabrication, oild and gas pipe, steel construction, tower, train rail and other steel cutting fields.
Detailed Photos
France Electrical Components
* The selection of branded spare parts technical services is guaranteed, and technical online service support.
Japan Fuji Servo Motor
* High motion precision: It can realize the closed-loop control of position, speed and torque; overcome the problem of stepping motor out-of-step; read data in time with encoder feedback to compare the position. * Speed: Good high-speed performance, generally rated speed can reach 1500-3000 rpm.
America Plasma Generator
plasma generator ave been designed and built for maximum efficiency and productivity for x-y cutting. Combined with multi-axis cutting beam, it produces perfect bolt holes with beveling .

8 Axis Cutting Beam
Support hole, beveling and groove cutting .Instantaneously changes speeds and uses sophisticated software algorithms to produce straight through holes.
Product Parameters

Model	T400
Max Cutting Length	6m / 9m / 12 m
Min Cutting Length	0.5 m
Max Cutting Diamter	430mm
Min Cutting Diameter	30mm
Reposition precision	0.02mm
Maximum cutting speed	12000mm/min
Torch Height control mode	Automatic
Control system	Shanghai Fangling
Electrical Supplier	380V 50HZ / 3 Phase

Samples
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
Company Profile
Yvchuang Laser is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15, 000 laser cutting systems in the market and a rapidly increasing global base, Yvchuang laser is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age. The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, CO2 laser cutting engraving machine, laser marking machine etc. With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.

---
