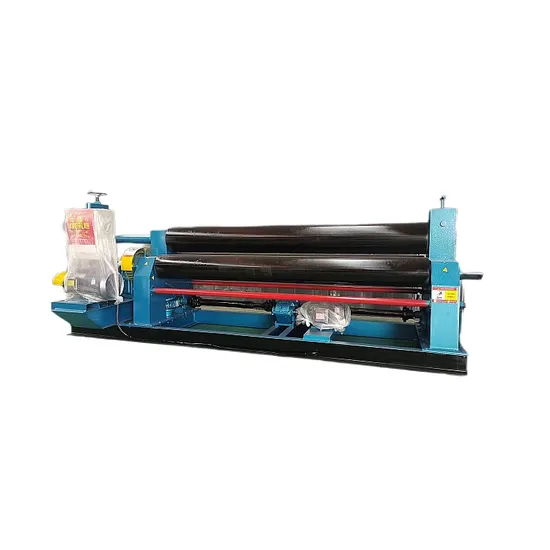

Three Roller Symmetrical Steel Plate Flange Rolling Machine with Control Cabinet

US$1,650.00 1 Piece (MOQ)

Basic Info.

Model NO.
W11-4x1600
Power Source
Electric
Feature
High Efficiency
Certification
CCC, ISO9001, CE
Warranty
12 Months
Customized
Customized
Advantage
Use Widely
Condition
New
Application
Metal, Steel, Mild Steel, Stainless Steel
Voltage
220V/380V Three Phase
Max Coil Thickness
4 mm(Steel)
Max Coil Width
1600 mm
Roller Diameter
105 mm
Main Motor Power
4 Kw
Auxiliary Motor Power
3 Kw
Main Reducer
Type 200
Auxiliary Reducer
Type 200
Transport Package
Wrap Film/Iron Frame/Foreign Trade Wooden Case
Specification
2800*1250*1300
Origin
China
HS Code
846229
Production Capacity
200 Set/Month

Packaging & Delivery

Package Size
570.00cm * 130.00cm * 130.00cm
Package Gross Weight
460.000kg

Product Description

Product Description
Three Roller Plate Rolling Machine
W11 mechanical plate rolling machine is a kind of general-purpose equipment specially used for metal plate bending and forming, and its structure form is three-roll symmetrical type.
This type of plate rolling machine has two lower rollers as the active rollers, which are mechanically transmitted through the motor and reducer to make the two lower rollers rotate.
The upper roller is the passive roller, its lifting movement through the motor, reducer, worm and wormwheel for mechanical transmission.
Key features
Mechanical fully automatic model - symmetrical 3 roller plate rolling machine
1.The equipment is made of steel plate welded parts, with high mechanical strength, high accuracy, and strong practicality.
he adjustment and operation of parallelism between the upper and lower rollers are simple, and the equipment maintenance is convenient.
2.Control Cabinet
Centralised control; equipment protection; simplified system wiring
3.Wireless Remote Control
Avoiding the inconvenience of a narrow range of mechanical control, it improves work efficiency and productivity.
Principle of operation (as shown)
Product Parameters
No. Model Biggest volume board thickness Maximum volume board width Speed Reduction Motor
1 W11-4x1200 4 mm 1200 mm
2 W11-4x1600 4 mm 1600 mm
3 W11-6x2000 6 mm 2000 mm
.
.
.
.
.
.
.
.
.
.
.
.
N W11-25x3000 25 mm 3000 mm
The above data is based on: mild steel
For more models/plates (e.g. stainless steel) please contact the staff.

Complete Machine Picture
16*2200 mechanical automatic plate rolling machine
12*2500 mechanical automatic plate rolling machine(with Roller head to roll tube/pipe)
12*3000 mechanical automatic plate rolling machine
Detailed Photos
Roller Material.--No.20 seamless carbon steel pipe OR solid steel pipe with modulated heat treatment
Support Shaft--For transfer by forklift even without packaging.
Shaft Die
The shaft die can be customized according to the need
(to achieve synchronous operation of the plate and tube)
Packaging & Shipping
Packing and Shipping-Iron frame packing/wooden case packing/container packing
Company Profile
FAQ
♦ Project Design
Assist you to choose equipment, design production process flow According to the customer actual production environment and production requirements.
♦ After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be paid by buyer.
♦ Oversea service
Engineers available to service machinery overseas.
♦ Response with 24 hour
We value every inquiry sent to us, ensure quick competitive offer within 24 hour.
♦ Full document
All necessary document will be provide .
♦ Payment way
We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram.
