Permanent Yellow 2GS-T (ORGANIC PIGMENT YELLOW 14) for Gravure Ink, High Transparency

Product Description

TECHNICAL DATA SHEET
TDS

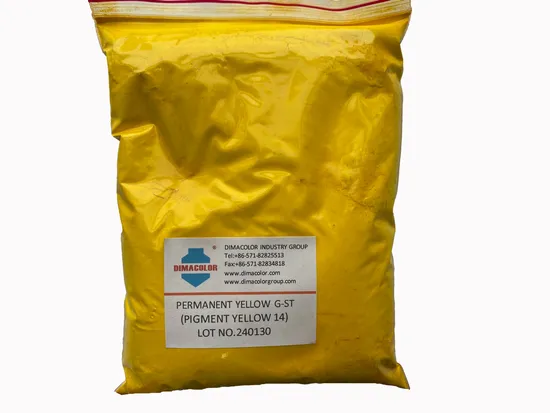

Product Name: PERMANENT YELLOW 2GS-T(PY14)
Code: PY14-2GST Countertype:TOYO 1405G
C.I.NO.: 21095
CAS NO.: 5468-75-7
EINECS NO.: 226-789-3
Molecular Weight:657.55
Chemical Formula: C34H30Cl2N6O4
Structural Formula:

Physical and Chemical properties:

TEST ITEMS	SPECIFICATION
APPEARANCE	YELLOW POWDER
SHADE	GREENISH,HIGHLY TRANSPARENCY
HEAT RESISTANCE	180 °C min
LIGHT FASTNESS	5
ACID RESISTANCE	5
ALKALI RESISTANCE	5
FASTNESS TO BLEEDING	5
OIL ABSORPTION	40-45%
SPECIFIC SURFACE	27 m2/g
DENSITY	1.50 g/cm3
RESIDUE ON 80 MESH	5.0% max
WATER SOLUBLE	1.0% max
VOLATITE 105 °C	1.0% max
TINTING STRENGTH	100-105 %

Use:Solvent base ink Packing:10kg,25kg bags with pallets/10kg,25kg drums
