UPVC PVC Hollow Corrugated Roofing Sheet Production Line Making Machine

Product Description

Product Overview
Plastic PVC UPVC Roof Sheet Making Machine
We can produce pvc roof tile machine of wave type ,trapezoidal type ,glazed type ,with a width range from 650mm to 1360mm ,common widths such like 900mm 1050mm 1130mm. The pvc roof sheet is suitable for tropical weather with advantage of anti-corrosion, rust-proof,strong durability, and beautiful appearance, easy and fast installation. It is widely used in the factories , sports stadium, schools, agriculture industry, marine, and warehouse, commercial buildings.

Processing Flow
Mixer→Auto loader→SJSZ80/156 conical twin screw extruder →Mould→ Vacuum Calibration platfrom→Edge cutter→Hual off machine→ Transversal cutter → Stacker
PRODUCT SPECIFICATIONS

PVC raw materials Loading and Mixing system
1. Spiral Loader or Vacuum auto Loader				one set
2. High speed Heating Cooling Mixer unit				one set

PVC Roof Tile Extrusion Line
1. Spiral Loader				one set
2. SJZ80/156 Conical double screw Extruder and co-extruder				one set
3. Mold and distributor				one set
4. Vacuum Calibration platfrom				one set
5.Side cutting				one set
6. Haul off unit				one set
7. Cutting unit				one set
8. Stacker				one set

Sheet/Plate Recycling machines
1. Sheet Crusher/Grinder				one set
2. PVC Pulverizer/Miller				one set

Specific information

Finished Product Size				width:650-1360mm thickness:1-4mm
Main Material				PVC/CaCO3/Processing Additives/ASA
Extruder				80/156 Conical Double-Screw Extruder+co-extruder
Production Capacity				400kg/h
Line speed				0.5-3m/min
Power				255kw

1. SJZ80/156 Conical double screw Extruder
Machine Electrical part:ABB inverter,Siemens Motor,Electrical wire is CE export standard Motor :75kw SIEMENS Gear Box: JC Brand / DELING Screw& Barrel : Zhoushan Control system : Siemens Screen touch control or RKC or OMRON table control.
2.Mould Die
Mold type: Coat hanger runner, uniform discharge. Head surface:0.04-0.05mm. Effective width: 1300mm Heating zones: 7zones Heating power: 3.5kw×7zones

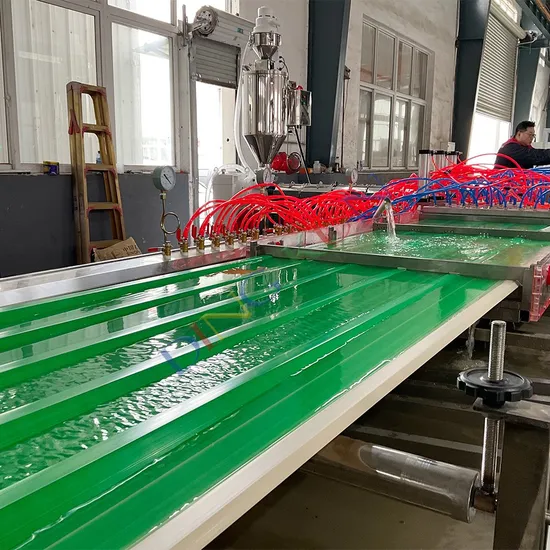

3.Vacuum Calibration platform
Length 6m equipped with strong cooling device which ensures the cooling effect.
4.Haul-off machine
Equipped with the precise speed reduction motor and inverter,has the advantages of reasonable structure,powerful and stable haul off force.
5. Cutter and Stacker
cutter has the reliable and accurate cutting performance. PLC Control

Delivery

Exhibition & Customers

Company profile
DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries. 1. Provide all the machines for the complete production according to customer's requirements. 2. Provide complete service for factory layout and other information to help customer to build the factory. 3. Provide the raw material to the customer if need. 4. Provide good service for machine installation and training, until the customers can run the machines and make stable production. 5. Provide after-sell service for all the life, except one year quality guarantee, 6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together
If you are interested in our machine ,please contact Anny Liang

---
