Exquisite and delicate DD Series High Stretched Low Noise Cold Room Evaporator

Product Details

Product Description

Product Description

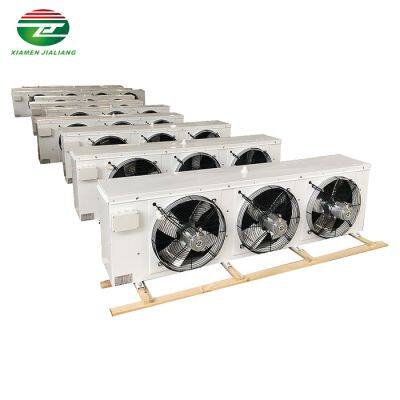

DD Series High Stretched Low Noise Cold Room Evaporator

Model	DD100	DD120	DD140	DD160
Refrige-Rating Capacity	17.5KW	21KW	24.5KW	28.0KW
Cooling Area	100㎡	120㎡	140㎡	160㎡
Diameter of Feed Inlet	19mm	19mm	25mm	25mm
Diameter of Tail Pipe	38mm	38mm	42mm	42mm
Wind Rate	5400*3m³/h	5400*3m³/h	5400*4m³/h	5400*4m³/h
Quantity	3N	3N	4N	4N
Fan Blade	450mm	450mm	450mm	450mm
Voltage	380v	380v	380v	380v
Power	3*280W	3*280W	4*280W	4*280W
Air Throw	15m	15m	15m	15m
Coil Unit	8.0KW	8.5KW	10.0KW	11.0KW
Drain Pan	1.6KW	1.7KW	2.0KW	2.2KW

Fin pitch: 6.0mm;
Fan equipped with external rotor: 3X4D500:
Air volume: 3X 7300 cubic meters/hour
Electric heating tube power: 5X1.6KW
Inlet pipe: Φ 19. Return steam pipe: Φ 38
The shell is made of galvanized sheet and sprayed with plastic: liquid inlet on the right side.
Fin pitch: 9.0mm
Fan equipped with external rotor: 4X4D500
Air volume: 4X6700 cubic meters/hour
Electric heating tube power: 8X2.6KW
Inlet pipe: Φ 25
Return steam pipe: Φ 50
The outer frame is made of galvanized sheet and sprayed with plastic; liquid inlet on the right side.
On site factory
A. Tailored Solutions & Customization
At Xiamen Jialiang, we specialize in providing customized solutions for various industries, including the refrigeration industry and cold storage engineering. Our expertise extends to agriculture, food, restaurants, and the chemical industry. We have the capability to design and tailor solutions according to our customers' specific requirements, ensuring that your needs are met precisely.
B. Outstanding Warranty
Xiamen Jialiang stands behind the quality of its products by offering an impressive one-year warranty period. In the rare event of any product quality issues, our commitment to excellent service means that we will promptly address your concerns, providing peace of mind and ensuring your satisfaction.
FAQ

Q1: How can I get one evaporate DD Evaporator?

A1: Since the express fee varies a lot, please send us inquiry and we will check the freight and inventory
immediately, so that you can get the product quickly.

Q2: What is the warranty of cold room evaporator DD Evaporator?

A2: One year warranty: non-human damage
