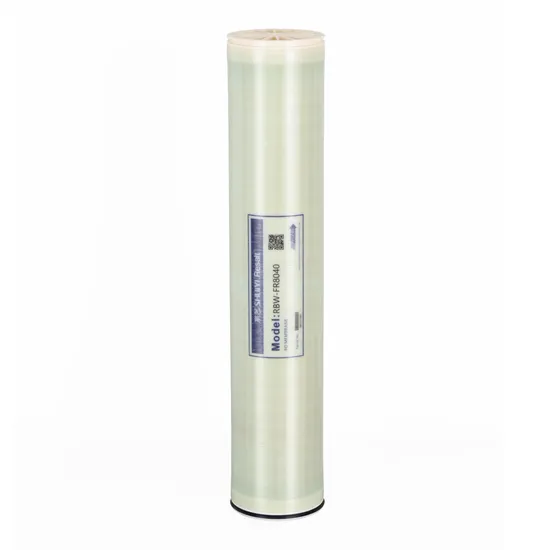

8040/4040 NF RO Membrane for Industrial Water Treatment

Product Description

About Shuiyi:
After years of honed in the competition, SHUIYI has become one of the few manufacturers in the industry with a full range of membrane technologies and products including micro filtration (MF), ultra filtration (UF), nanofiltration (NF) and reverse osmosis (RO).
Our membrane products are widely used in the application fields of municipal sewage reclamation, industrial wastewater zero discharge, reclaimed water reuse, pure water preparation, highly polluting wastewater treatment, river restoration, decentralized rural sewage treatment, process concentration and separation, etc., with rich application experience and engineering project cases.
Introduction
TapfilmTM Series of membrane elements are nanofiltration membrane products specially developed for water purification field, which are suitable for advanced treatment of drinking water, surface water and groundwater. It has a high removal rate of biological pollutants, antibiotics, pesticide residues and heavy metal, a medium removal rate of mineral salt with a low operation energy consumption.
Special grid design is adopted in the inlet channel, which makes the product have more obvious advantages in pollution resistance and easy cleaning.
TPW1 is mainly for the removal of organic matter in water, retaining most of the monovalent ions, and is suitable for treatment of low salty water.
TPW2 has high removal ability for divalent ions, can remove organic matter and most hardness in water, and ensure the taste of purified water.
TPW3 is mainly used to remove most of organics and inorganics in medium and high salty water.
Features High removal of organic matter; Low pressure operation, low energy consumption; Unique physical design and advanced anti-fouling technology reduce the demand of chemicals; High and stable pure water production with the innovative high flux technology
Specifications

Membrane Specifications	Model	TPW1-8040	TPW-8040	TPW3-8040
	Material	Aromatic Polyamide
	Structure	Spiral wound
	Active Membrane Area	37 m2
	Spacer Thickness	34 mil
Performance	Standard Test Solution	2000 mg/L MgSO4 500 mg/L PEG-400	2000 mg/L MgSO4 500 mg/L CaCl2	2000 mg/L NaCl
	Operation Pressure	0.5 MPa	0.75 MPa	0.75 MPa
	Test Temperature	25
	Recovery	15%
	pH	6.5-7
	Permeate Flow Rate (m3/d) /GPD	40/10500	38/10000	40/10500
	Rejection Rate (%)	≥ 98 (MgSO4) ≥ 90 (PEG-400)	≥ 98 (MgSO4) 70±10 (CaCl2)	≥ 90 (NaCl)
Application Limits	Max. Operation Pressure (MPa)/GPM	4.1/600
	Max. Feed Flow (m3/h)/GPM	17/75
	Feed Temperature Range (oC)	5-45
	Feed pH Range	3-10
	Cleaning pH Range	2-11
	Max. Feed Turbidity	1.0 NTU
	Max. Feed SDI15	5
	Residual Chlorine Control	<0.1
	Max. Pressure Drop of Single Element	15 psi

PS. 1. The performance parameters area measured after 30 minutes of stable operation of the system
2. The deviation range of water yield is ± 15%
Application Fields: Municipal water supply Water resource purification Drinking water industry Bottle water industry

---
