Product Details
Product Description
Product Description

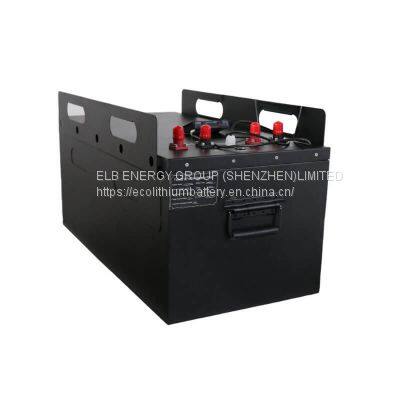

This 36V 800Ah Forklift Battery are built in lithium battery technology, the Battery weigh as little as 2579lbs and normally use a standalone 480V, 3 phase charger. Some models are offered with a 110V, 56A output BIC (Built-in Charger) when portability is required.
Which offer BMS controlled safety, long life,fast-charging performance, also the BMS embeds smart balancing algorithms that control all cell voltages, making sure they are constantly at the same voltage level, optimizing battery capacity.
| ELECTRICAL SPECIFICATION |
| Nominal Voltage | 38.4V |
| Nominal Capacity | 820AH |
| Stored Energy | 31488Wh |
| Resistance | 30 mΩ |
| Self Discharge Rate | | Maximum Continous Charge Current | 400A |
| Maximum Continous Discharge Current | 600A |
| Charge Cut-off Voltage | 30 V |
| Discharge Cut-off Voltage | 43.8V |
| Cycle life(25°C) | >4000 times@80%DOD |
| MECHANICAL SPECIFICATIONS |
| Dimensions (Inches) | L38 x W20 x H30 |
| Weight | 2579lbs |
| Protection Level | IP67 |
| Case Material | Commercial Grade Steel |
| Communication Protocol | RS485/ CAN |
| TEMPERATURE SPECIFICATIONS |
| Discharge Temperature | -20 to 55°C |
| Charge Temperature | -0 to 50 °C |
| Storage Temperature | -20 to 60 °C |
| OTHERS SPECIFICATIONS |
| Short Circuit Protection | Automatically recover after removal of short |
| Life Expectancy (years) | 10 years at one cycle per day |
The Certification that ELB Got:
ELB Battery certification
Check details in ELB certification center.
>>
