Plastic 5L Lubricate Oil Bottle Water Bottles Manufacturing Machines Blow Molding Machine

Product Description

Plastic 5L Lubricate Oil Bottle water bottles manufacturing machines blow molding machine

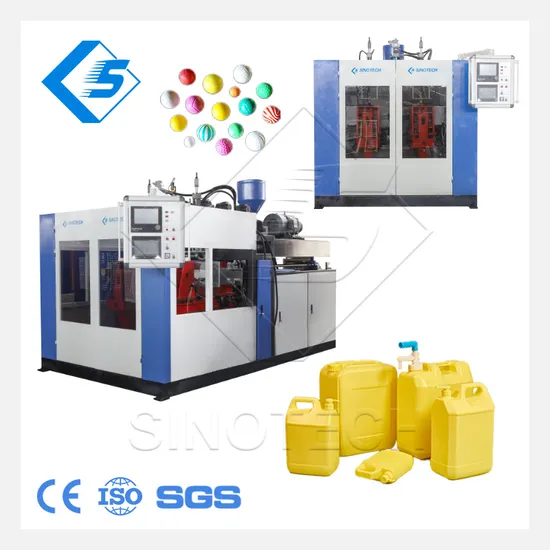

Extrusion blow molding machine STB-5L
STB series blow molding machine is with the features of low cost, energy save and high quality. Suitable for oil bottles, shampoo bottles, chemical bottles, milk bottles and related product not over 5L.
Adopt high quality HMI+PLC controller and PID temperature controler to ensure the good funciton of the mico system...
Equipped with wall thickness controller(MOOG parison 100 points) to accurately control the quality of products.
Equipped with sliencer and oiling system to reduce noise and friction.
Machine model: STB-5L
Production Capacity: 150-180PCS per hour (4L or 5L HDPE bottle as standard)
Suitable material: PP, PE, HDPE and etc.
Max. Products volume: 5L
Screw diameter: Φ 70mm L/D=24

Item	Unit	STBII-5L-70U
Max. product volume	L	5
Dry	pc/h	700*2pcs/h
Screw diameter	mm	70mm
Screw L/D ratio	L/D	25L/D
Screw motor power	Kw	22kw
Screw heating capacity	Kw	5*3kw
Double die head center distance	mm	160
Three die head center distance	mm	110
Four die head center distance	mm	90
No. of heating zone	Zone	3 Zone
Output of HDPE	Kg/hr	70-85kg/hr
Oil pump drive power	Kw	11-15kw
Clamping force	KN	68KN
Mold stroke	mm	148-508mm
Size of mold(W*H)	mm	370*390mm
Moving distance	mm	420mm
Max. die diameter	mm	160mm
Die heat capacity	Kw	3.5-4.3kw
Blowing pressure	Mpa	0.6-0.8mpa
Air volume	M³/min	0.6M³/MIN
Cooling water pressure	Mpa	0.4mpa
Water consumption	L/min	60L/min
Weight of machine	Ton	6 ton
Size of machine(L*W*H)	m	3.5*2.1*2.1

Company Profile
Certifications
FAQ
Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer's needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost an
Any question,please call me.

---
