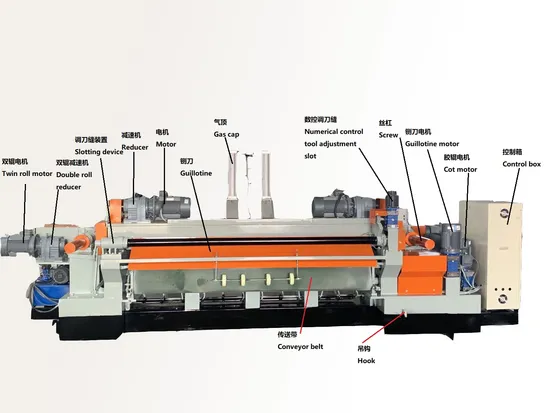

Spindleless Wood Veneer Peeling Machine

Product Description

Main machine model and parameter:

1500 Type Knife Table Moving CNC Machine
ITEM	STANDARD	REMARK
ROLLER LENGTH	1500mm	, MILLING PATTERN,HARD CHROMIUM PLATING
ROLLER DIAMETER	SINGLE ROLLER 125MM, DOUBLE ROLLER 150MM
PEELING KNIFE SIZE	1500*140*12.7mm
TWO ROLLERS MOTOR POWER	7.5kw*2	R87 HARDENED SURFACE REDUCER
ONE ROLLER MOTOR POWER	7.5kw*2	R87 HARDENED SURFACE REDUCER
LOADING BAR MOTOR POWER	11kw	R87 HARDENED SURFACE REDUCER,SEVRING MOTOR
RUBBER ROLL MOTOR POWER	2.2KW	RV110 HARDENED SURFACE REDUCER
CUTTER MOTOR POWER	2.2kw	RV110 HARDENED SURFACE REDUCER
TOTAL POWER	45.4kw
PEELING DIAMETER	40mm-550mm
PEELING SPEED	0m-100m/min
PEELING THICKNESS	1mm-4mm
TOTAL WEIGHT	6.5T
CONTROLLER	TOUCH SCREEN

Model 1500 NC Integrated Machine
Model	Configure	Motor	Quantity(Set)
Double roller diameter 157mm	K87 Hardened reducer	5.5kw	2
Single roller diameter 125mm	R87 Hardened reducer	5.5kw	2
Fodder chopper	RV90 reducer	2.2kw	1
Fodder chopper	RV90 reducer	2.2kw	1
Feed screw	R87 Hardened reducer	7.5kw	1
Peeling thickness 1.3-3.6mm		Peeling speed 0-70m/min
Outline dimension(L*W*H)		5000*2300*1350mm
Maximum opening		600 mm
Minimum core diameter		26mm
Total weight		81000KG
Control system		Remote monitor

1.3METER NUMERICAL PEELING MACHINE

Item	Standard	Remark
Roller length	1500mm
Two rollers motor power	7.5kw*2	R87 hard tooth surface
One roller motor power	7.5kw*2	R87 hard tooth surface
Loading bar motor power	7.5kw*2	R77 hard tooth surface, servo motor
Cutter motor power	4kw
Rubber roll motor power	4kw
Total power	45.5kw
Peeling diameter	32mm-550mm
Peeling speed	0m-70m/min
Peeling thickness	1mm-3.6mm

Brief introduction:

Company brand	HONGZHI
MInimum of quantity	1x20GP
Delivery time	Within 10 days after got your deposit
Shipping port	Qingdao and Lianyungang
Company location	Our company is next to Linyi city bus station, Shandong province, China. 1 hour from Qingdao Liuting Internation Airport and qingdao high-speed station. 1.5 hours from Shanghai Pudong International Airport and shanghai high-speed station. 2.5 hours from Guangzhou Baiyun International Airport and guangzhou high-speed station.
Payment terms	20% T/T in advance, 80% in the period of shipment
Contact information	Mob: 0086-15806925262 Willian

LINYI HONGZHI IMPORT & EXPORT CO.,LTD
ADD:NO.1017, XIAOGEZHUANG VILLAGE, YITANG TOWN, LANSHAN DISTRICT, LINYI CITY, SHANDONG PROVINCE,CHINA
Contact person:Jack Yang vchat:yangchuanwu666

---
