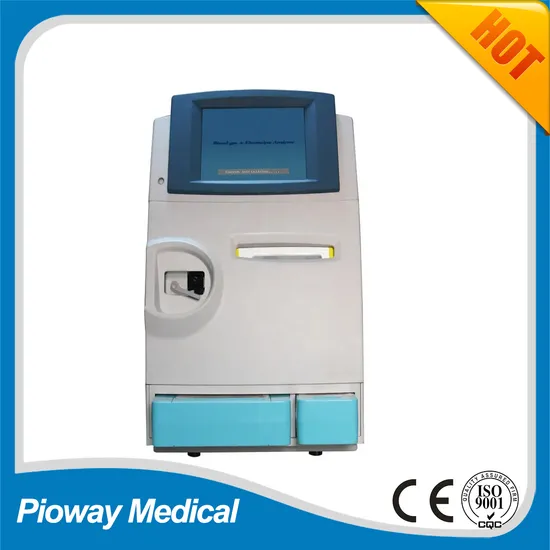

Blood Gas & Electrolyte Analyzer Blood Testing Equipments Bg-800

Product Description

Blood Gas & Electrolyte Analyzer Blood Testing Equipments BG-800
Introduction:

Blood gas analyzer can provide a safer alternative to follow ACCP [4] suggested "pH is chemical process optimization of pleural effusion, and pH must be conducted using a blood gas analyzer determination".BG 800 wise blood gas analyzer has a pH measurement of pleural effusion dedicated mode, can provide accurate measurement results, at the same time reduce the wrong blood pH pH mistaken for pleural effusion of risk.
Feature:

Multi-combination parameters
Self-made maintenance free electrodes
Both for syringes & capillary
35UL for capillary, 95UL for whole blood
1 min from the aspiration to result
Long-lasting fluid system
All-in-one design calibrate cartridge
Cartridge expiration alarm & residue
Preheats reagents & sample
Optional Auto QC cartridge with H/M/L level
Data storage >5,000
Colorful touch screen with high resolution
Friendly operation interface
Infrared human-detector
Rich data management interface
Battery backup
Build-in thermal printer
Convenient bar-code system management
Economic cost per test
Technical Parameters

Analyte	Measuring range	Unit
pH(CH)	6.000-9.000
pCO2	1.607-26.67	kpa
	8.0-200.0	mmHg
pO2	0-106.7	kpa
	0-800.0	mmHg
K	0.5-15.0	mmol/L
Na+	20.0-200.0	mmol/L
CI-	20.0-200.0	mmol/L
Ca++	0.3-5.0	mmol/L
Hct	12.0-65.0	%

Item:	Blood & Gas Analysis System
Type:	Blood & Gas Analysis System
Certificate:	CE ISO13485
OEM & ODM:	Acceptable
Test Menu:	pH, pCO2, pO2, K, Na, Cl, Ca, Hct
Sample:	Whole blood, Serum, Plasma, Dialysate, CSF
Input Parameter:	Patient Temperature, Hemoglobin, FIO2, B.P.
Interface:	1. Serial Line RS-232. 2. TCP/IP interface, LIS connection under HL7 protocol. 3. USB port. 4. Integrated Bar-code reader.
Analysis Time:	<90s
Sample Volume:	1. 95uL whole blood (120uL if with Glu and Lac). 2. 50uL capillary blood.
Calibration:	1. Automatic. 2. Programmable 1-point and 2-point calibration.
Display:	10.4'' TFT touch screen
Battery:	Nickel-metal Hydride Battery, 3.0Ah
Printer:	Built-in Thermal Printer, 70mm
Barcode Reader:	Up to 14 Kinds Barcode Type
Work Environment:	15ºC~30ºC
Storage Environment:	5ºC~40ºC
Power Supply:	100-240V 50/60HZ
Instrument Dimension:	400(W)*574(H)*344(D) mm3
CAL PACK:	258(W)*180(H)*70(D) mm3
AutoQC Cartridge:	103(W)*180(H)*70(D) mm3
Instrument Weight:	18kg
