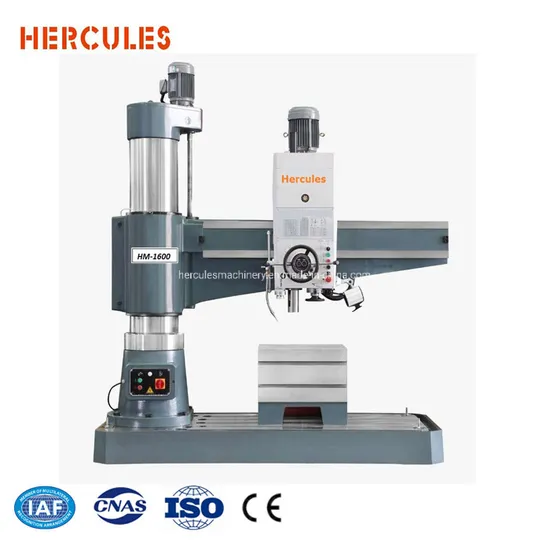

HM-RDH55/1600(55mm) Taladro Radial Drilling Press Cutting Tapping machine

US$12,000.00-13,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
HM-RDH55/1600
Controlling Mode
Hydraulic
Number of Shaft
0
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
N.W/G.W
3500/3800 kilos
Transport Package
Wood Pallet
Specification
2380*980*2600
Trademark
HERCULES OR OEM
Origin
China
HS Code
8459290000
Production Capacity
3000 PCS/Month

Product Description

Advantage
1. Meehanite® Castings, FC30 fine grain, and high density cast iron.

2. Casting with nature annealing and stress release

3. Turcite-B Premium slide Coated

4. Original TAIWAN made gear and shaft

5. Spindle made of Cr-Mo Alloy
Specification Unit HM-RDH55/1600
Max. Drilling dia. mm Iron 55
Max.Tapping dia. mm M42
Distance from spindle nose to base mm 320-1215
Distance from spindle nose to table mm 350-1600
Spindle travel mm 315
Spindle bore MT5#
Spindle speed range r/min 40-2550(60Hz)
25-2000(50Hz)
Spindle speed step 16
Spindle feeding range mm/rev 0.04-3.2
Spindle feeding step 16
Rocker rotary angle deg ±180
Main motor power kW 3.75
Movements motor power kW 1.5
Machine dimensions mm 2380*980*2600
Packing dimensions mm 2650*1280*2500
Machine weight kg 3500
Packing weight kg 3800
Hercules Machinery Equipment Ltd.

Pictures for reference only:
