50W 100W Backpack Handheld Pulsed Laser Cleaning Machine for Rust Paint Oil Removal Portable Laser Cleaner

Product Description

Product Description

SIZE OF 50W
SIZE OF 100W
SIZE OF LASER HEAD

Introduction:

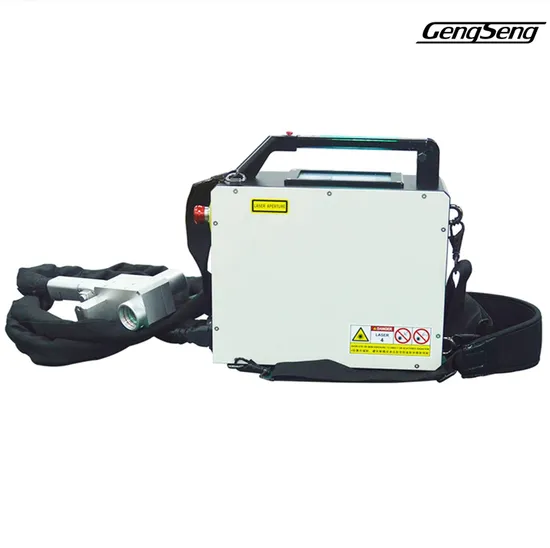

GS-C50/GS-C100 Laser rust removal equipment is in backpack-style. The outlook is the same as a backpack, which is very easy to take along and move.
It can remove the grease, dirt, coating, paint, rust, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.
What are the Features of Fiber laser cleaning?:
1. Laser cleaning has no grinding, non-contact, no thermal effect, and is suitable for various materials, etc.
2. Rapid, clean and accurate cleaning;
3. No damage to the substrate;
4. High cleaning precision, strong control ability;
5. Can be used for a long time, low operating costs;
6. Light to carry on the shoulder for outside high position cleaning work;
7. Environmentally friendly, no pollution. 8. Laser cleaning does not require cleaning fluid or other chemical solutions, will not cause secondary pollution,and the cleanliness is much higher than that of chemical cleaning processes;
9. Laser cleaning technology is aimed at a wide range of cleaning objects, such as various oxide particles, rust coating and surface organic matteretc, and is not limited by the substrate material;
10.laser cleaning is a non-contact processing,which can beoperated remotely, by adjusting the laser process parameters, it will not damage the substrate.

	Laser cleaning	chemical cleaning	Mechanical grinding	dry ice cleaning	Ultrasonic cleaning
Cleaning method	By Laser non-contact	Chemical cleaning, contact	sandpaper, contact	Dry ice, non-contact	Cleaning agent, contact type
Workpiece damage	no	yes	yes	no	no
Cleaning efficiency	High	low	low	medium	medium
Consumables	Only electricity	Chemical cleaning agent	sandpaper, grinding wheel	dry ice	Special cleaning agent
cleaning effect	spotlessness	general, uneven	general, uneven	excellent, uneven	Excellent, small range
Safety/environmental protection	No pollution	polluted	polluted	No pollution	No pollution
manual operation	Simple operation, handheld or automated	The process flow is complex, and the requirements for operators are high	Labor-intensive, protective measures are required	Simple operation, handheld or automated	Simple operation, need to manually add consumables
cost input	High initial investment cost, no consumables, low maintenance cost	Low initial investment and high cost of consumables	High initial investment and low cost of consumables	The initial investment is medium, and the cost of consumables is high	Low initial investment and high cost of consumables

What is the difference between a pulsed laser and a continuous laser(Fiber laser source is consist of continues laser source and pulsed laser source in operation)?
Pulsed laser source:
refers to a pulse pf light emitted by a laser source in a pulsed working mode.in short ,it is like the work of a flashlight.When the switch is closed and then immediately turned off,a "light pulse"is send out.Therefore,the pulses are one by one,but the instantaneous power is very high and the duration is very short.It is necessary to work in pulse mode,such as sending signals and reducing heat generation.The laser pulse can be extremely short and has an excellent effect in the field of laser cleaning machines,it does not damage the substrate of the object.The single pulse energy is high,and the effect of removing paint and rust is good.
Continuous laser source:
The laser source continues to provide energy to produce a laser output for a long time.Thus obtaining continuous laser light.Continuous laser output power is generally relatively low.Starting at 1000w.It is suitable for laser metal rust removal.The main feature is that is burns the surface and cannot whiten the surface of the metal.After cleaning the metal,there is a black oxide coating.In addition,it has a good effect for cleaning non-metallic surfaces.
In short:The best way to clean various workpieces (such as paint removal,rust removal,oil removal,etc)is to use a pulsed laser source.

Machine Parameters

Model	RL-C100S	RL-C50S
Laser source	Fiber	Fiber
Laser Power	100W	50W
Fiber cable length	3M	3M
Laser Wavelength	1064nm	1064nm
Pulse Energy	1.5 mJ	1mJ
Pulse frequency	1-4000KHz	1-1000KHz
Scanning speed	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling
Dimension	500*300*650 mm	300*160*450mm
Net Weight	33KG	18KG
G.W.	37KG	21KG
Beamwidth	10-100mm	10-70mm
Optional	Manual	Manual
Cleaning Head	Dual / Single Axis	Single Axis
Temperature	5-40 ºC	5-40 ºC
Voltage	Single Phase AC 220V, 50/60HZ	Single Phase AC 220V, 50/60HZ

The handle of the case is made of aluminum alloy, which is good in texture, light and durable. The arc design makes it easier to carry it. The mini case is only as big and light as a backpack. Meanwhile, lightweight to carry, easy to operate, the laser head can output different laser beam, like wave, circle and square.
Applications:
Widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, etc, for de-rusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal.
It is suitable for the cleaning of the rust layer, thick-layer paint, deep oil stain, rough surface and weld cleaning, which will affect the surface of the substrate.

Rust Removal Oxide Removal Molding Cleaning Surface Preparation Coatings Removal Weld Pre-treatment Gluing Pre-treatment Removal of Oil and Grease Paint Removal Surface Cleaning Stain Removal Surface Roughening Tool Cleaning Historic Restoration Selective Paint Removal Precise Cleaning

sample disappy


Packaging & Shipping
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Transport:
We will provide various ways of transportation.
By sea/By air/By train/By car
Our Factory

FAQ

1. Q: Why should you choose us?
A: We have about 20 years of laser equipment experience. We have focused on CNC laser equipment since 2004.
Mainly focus on fibre laser cutting/welding machine and cutting/welding robot etc. Welcome to visit us.
2. Q: I'm not familiar with the machine.
A: You just need to tell us the materials, working size and thickness, I'll recommend you the right machine.
3. Q: How to operate the machine?
A: We will deliver the English manual and video with the machine to you, If you still need our help, we have professional technical engineers for training.
4. Q: What can we do if something is wrong with the machine within the warranty period?
A: The free parts will be provided if the problems with the machine are not caused by any wrong operation of operators. We also provide lifetime repairing for the machines after the warranty date.
5. Q: How can get the sample to check your quality?
A: If you want to mark a sample to check the quality, we can help you do this. First, you need to provide the logo or design to us, free mark samples can be provided.
6. Q: Do the machine can be customized according to my requirements?
A: Sure, we have a strong technical team and rich experience. Our goal is to make you satisfied.
7. Q: Can you arrange the shipment for me?
A: We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW etc.

---
