Black Steel Tube Production Line Round / Square / Rectangular / Oval / Special ERW Tube Pipe Mill

Product Description

Product Description

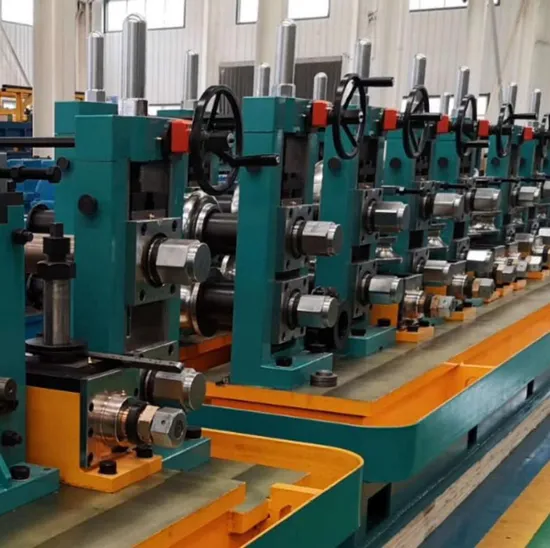

ERW pipe mill
The high frequency straight seam welded pipe mill is used to level the fixed strip after slitting line, and entry it to forming machine, bend to open pipe by rollers, melt the strip edges through the high frequency current,squeeze and weld the pipe to be closed by the squeeze roll. The high frequency pipe mill also called ERW pipe mill.
High frequency welded pipe mill is the special equipment producing welded steel pipe and profile pipe for industries such as metallurgy, construction, transportation, machinery and so on. Taking cold or hot rolled steel as raw materials, through cold formed and high-frequency welding to produce the round pipe, square pipe and rectangle pipe.
Product Parameters
Technical processing of ERW pipe mill :
Loading coil --- un-coiler --- leveling --- shear and butt welder --- horizontal accumulator --- forming --- HF welding machine --- external burr removing --- cooling --- sizing machine--- cutting by flying saw --- run out table --- packing
Main technical specifications of straight seam welded pipe mill

Model	Round Pipe		Square & Rectangular Pipe		Speed(m/min)	Floor area(m2)
	Diameter(mm)	Thickness(mm)	Size (mm)	Thickness (mm)
ERW 32	10-38 mm	0.5-2.0 mm	10x10~30x30mm	0.5-1.6mm	Max.120m	12x40
ERW 50	15-51 mm	0.5-2.5 mm	15x15~40x40mm	0.5-2.0mm	Max.120m	12x60
ERW 60	16-60 mm	0.5-3.0 mm	15x15~50x50mm	0.5-2.5mm	Max.120m	12x60
ERW 76	20-76 mm	1.0-4.0 mm	20x20~60x60mm	1.0-3.0mm	Max.120m	16x80
ERW 89	25-89 mm	1.0-4.5 mm	20x20~70x70mm	1.0-3.5mm	Max.120m	16x100
ERW 114	38-114 mm	1.0-5.0 mm	40x40~90x90mm	1.0-4.0mm	Max.80m	16x100
ERW 165	60-165 mm	2.0-6.0 mm	50x50~150x150mm	2.0-5.0mm	Max.60m	16x100
ERW 219	89-219 mm	3.0-8.0 mm	80x80~200x200mm	3.0-8.0mm	Max.50m	16x150
ERW 273	114-273 mm	4.0-10.0 mm	100x100~250x250mm	4.0-10.0mm	Max.40m	18x160
ERW 325	165-325 mm	4.0- 12.7 mm	100x100~300x300mm	4.0-12.0mm	Max.30m	24x180
ERW 426	19-426 mm	5.0-14.0 mm	150x150~350x350mm	5.0-14.0mm	Max.30m	24x180
ERW 508	219-508 mm	6.0-16.0 mm	200x200~400x400mm	6.0-16.0mm	Max.25m	24x180

Note: The data in the form is just as reference according to general ranges.Normally we design and produce the straight seam welded tube mill according to customer's specific requirement. So every customer can buy his own ERW straight seam welded pipe mill from us.

Detailed Photos

Product Application

Packaging & Shipping
Packing of ERW Pipe Making Machine
1. Free Fumigation Seaworthy Wooden Packages for Electric Cabinet, Mechanical Machinery is naked packing.
2. Mark as buyer's request .
3. Pallet for fork truck

---
