2 Inch 58mm TP2LX Thermal Printer Mechanism TP2L Series Compact Design Direct Thermal Printer Mechanism for Medical Devices

Product Description

Product Description

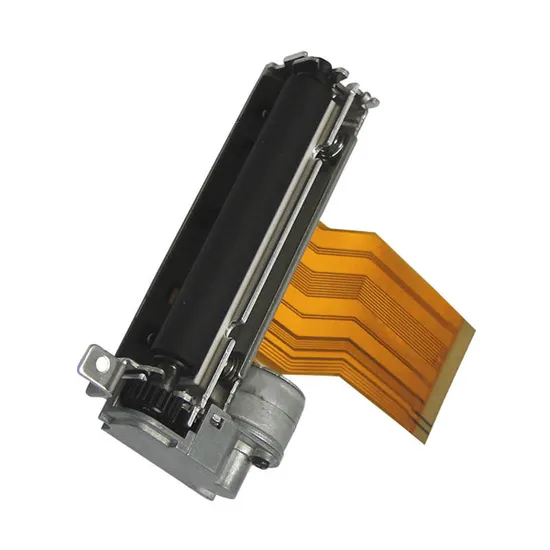

2 Inch 58mm TP2LX Thermal Printer Mechanism TP2L Series Compact Design Direct Thermal Printer Mechanism used for Medical Devices TP2LX Thermal Printer MechanismTP2L series 2"printer is compact design direct thermal printer mechanism. It can be used in medical devices (Brood test instrument, Urine test instrument) and other various applications. Optional vertical or horizontal design to meet customer's different requirement. Max printing speed is up to 150mm with 203dpi resolutions. It is a front open printer mechanism with latch function. TP2L comes with a 2 years warranty as standard.
Application:
1.Top paper exit EFT-POS
2.Commercial cash registers
3.Fiscal cash registers
4.Portable cash registers
5.Receipt printer with front paper exit
6.Ticket issuing terminals
7.Medical equipments
Features:
1.Front open mechanism with latch function
2.Compact design, straight paper path, support to print label
3.Printing speed up to 150mm/s(ATP2LMP8MX)
4.High resolution up to 8 dots/mm High printing endurance up to 100km(ATP2LMP8MX)(using F230AA Mitsubishi paper, DJ03 paper or equivalent thermal paper)Product Parameters
2 Inch 58mm TP2LX Thermal Printer Mechanism TP2L Series Compact Design Direct Thermal Printer Mechanism used for Medical Devices Number of dotsResolutionPaper entry width (mm)Valid printing width (mm)Highest printing speedOperating voltageTPH abrasion resistance

384dots/line

8dots/mm(203dpi)

58mm(paper width 57.5±0.5mm)

48mm

100mm/s, 150mm/s, 75mm/s

4.2V~9.5V, 12V~14V, 3.3V~5V

100km(by using F230AA Mitsubishi paper/DJ03 thermal paper)

Packaging & Shipping
Lead Time:2 Inch 58mm TP2LX Thermal Printer Mechanism TP2L Series Compact Design Direct Thermal Printer Mechanism used for Medical Devices

Quantity(Sets)	1 - 2000	>2000
Est. Time(days)	5	To be negotiated

Company Profile
Suzhou Qiji Electric Co., Ltd specializes in designing, developing, manufacturing and marketing of printing equipment.With experienced and professional R&D team, we successfully launched a series of printing equipment, such as advanced POS receipt printers, portable printers and LCD modules, bluetooth printer, micro panel printer, KIOSK printer, barcode label printer, as well as printer mechanisms (thermal & impact type) and so on.Our products are widely used for POS/ECR, transport ticketing, instrument analyzers, KIOSK system, electronic medical equipment, self-service solution, fire safety, tax control, shopping malls, car automotive, food and beverage industries, embedded printing solutions, cinemas, highway, boarding cards, tax control system and so on.
FAQ

1.Can I get a sample order first to test the quality and compatibility?

Yes, usually we have samples in stock, customers can easily buy them for testing purpose.

2.What about delivery time?

For sample, usually 3 days. For bulk order,usually 7 to 15 days,depends on order quantity.

3.How about Payment terms?

For sample, Paypal, Western Union. For bulk order, T/T prepaid.

4.How about shipping methods?

DHL, UPS, FedEx,China Post, etc are all ok, we will choose the economical and fast way.

5.How about the warranty?

All items have 1 year guarantee.

6.How will you control the printer's quality?

We fully tested every product before shipping out, and also we have QC persons.

7.Can you make OEM or ODM for products?

Yes, OEM and ODM products are available.

---
