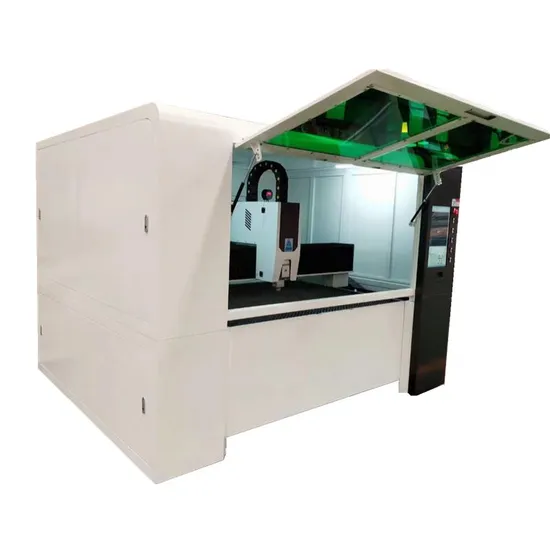

Metal CNC Fiber Laser Cutter Fiber Laser Cutting Machine

Product Description

Product Description
Metal fiber laser cutter fiber laser cutting machine for iron steel aluminum copper plate sheet
Product acessories
Product Parameters

Model	CA-1015
Working area	1500x1000mm
Laser Power	1500W
Laser Wavelength	1064nm
Application Materials	Metal
Max. Cutting Thickness	SS:8MM,CS:12MM
Gross Power	9KW
Positioning Accuracy	±0.03mm/m
Reposition Accuracy	±0.02mm
X/Y-axis Maximum Simultaneous Positioning Speed	140m/min
U-axis max.moving speed	30m/min
Cooling Model	Water cooling
Rotary system	Optional

Features
features of fiber cutting machine
1.Integrated machine design, left and right collecting drawer design highly saving space.2.Stability and reliability for light path system and control system.3. Fiber laser has high and stable function and lifespan which is over 100000 hours.4.Higher cutting quality and efficiency with cutting speed being up to 15m/min with perfect cutting edge.
5. High performance reducer, gear and rack; Leadshineservo drivers and more effective in cutting.6. Imported ball screw and square guide provides high speed and accuracy when working.7. Water chiller high capacity provides stability during long-term operation.8.A separate control box and handheld control makes it easier to control the machine9. Without consumables. Easier to use, adjustment of the optical beam is not necessary
Application
The applicable materials include:
ordinary carbon steel, stainless steel, Alloy steel, Aluminum, copper, titanium plate etc.
Suitable for aerospace technology ,rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
Packaging & Shipping
Company Profile

FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2: This is the first time i buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other crificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be20-30 working days.
Q7: How is the payment?
Normally we accept T/ or LC, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.

---
