Product Details
Product Description
Product Description
Brand: Yingpeng
Model: BL-200LC2400L
Volume: 2400L
Operating temperature ℃: 0 ℃~10 ℃
Power (W): 1250
Power consumption (kW · h/24h): 10.62
Refrigerant: R290
Weight (kg): 326
Boundary dimension (mm): 2480 * 745 * 2135
Explosion proof grade: ExdibmbIICT4Gb
Main parameters of explosion-proof refrigerated cabinets
brand
Yingpeng
Yingpeng
Yingpeng
Yingpeng
Yingpeng
Yingpeng
model
BL-200LC100L
BL-200LC200L
BL-200LC250L
BL-200LC300L
BL-200LC370L
BL-200LC400L
Volume (including mechanical room) L
one hundred
two hundred
two hundred and fifty
three hundred
three hundred and seventy
four hundred
Operating temperature ℃
0℃~10℃
0℃~10℃
0℃~10℃
0℃~10℃
0℃~10℃
0℃~10℃
Power (W)
ninety-five
one hundred and fifty-three
one hundred and sixty-five
one hundred and ninety-eight
two hundred and fifty
two hundred and twenty-five
Power consumption (kW · h/24h)
zero point eight one
one point three four
one point five nine
one point eight four
two point two three
two point five three
cryogen
R600a
R600a
R600a
R600a
R600a
R290
Weight (kg)
twenty-five
fifty-two
sixty-three
sixty-six
seventy-three
ninety-three
Overall dimensions (mm)
480*525*840
570*535*1750
570*555*1900
610*595*1980
610*663*2010
995*550*1965
Explosion proof level
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb
Main parameters of explosion-proof refrigerated cabinets
brand
Yingpeng
Yingpeng
Yingpeng
Yingpeng
Yingpeng
Yingpeng
model
BL-200LC680L
BL-200LC900L
BL-200LC1100L
BL-200LC1200L
BL-200LC1800L
BL-200LC2400L
Volume (including mechanical room) L
six hundred and eighty
nine hundred
one thousand and one hundred
one thousand and two hundred
one thousand and eight hundred
two thousand and four hundred
Operating temperature ℃
0℃~10℃
0℃~10℃
0℃~10℃
0℃~10℃
0℃~10℃
0℃~10℃
Power (W)
four hundred and eighty
five hundred and fifty
six hundred and fifty
six hundred and fifty
eight hundred
one thousand two hundred and fifty
Power consumption (kW · h/24h)
three point eight one
four point four eight
six point one two
five point three two
nine point seven nine
ten point six two
cryogen
R290
R290
R290
R290
R290
R290
Weight (kg)
one hundred and four
one hundred and twenty-one
one hundred and forty-seven
one hundred and eighty-two
two hundred and eighty
three hundred and twenty-six
Overall dimensions (mm)
1080*615*2120
1220*685*2120
1510*685*2120
1250*745*2135
1860*745*2135
2480*745*2135
Explosion proof level
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb
ExdibmbIICT4Gb

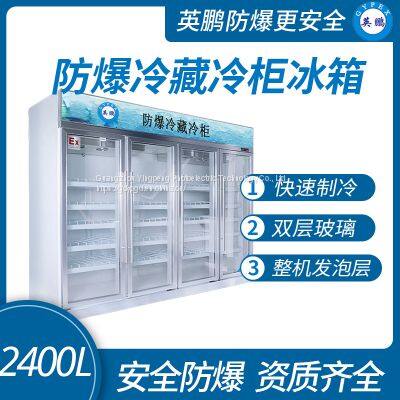

Product Description:
1. Hollow glass design, good insulation performance, efficient anti fog, and excellent display effect
2. Ultra thick foam layer with insulation effect, high-efficiency thick precision insulation layer, enhancing insulation effect
3. Universal wheel design for easy and lightweight movement
4. Famous brand compressor, efficient refrigeration, low noise, low power consumption, stable performance
5. Built in energy-saving light tube, constantly showcasing the effect
6. Adjustable shelf, with adjustable height, making food storage more convenient.
Product features of Yingpeng explosion-proof refrigerator
Explosion proof refrigerators, also known as explosion-proof refrigerators, are mainly used in fields such as petroleum, chemical engineering, scientific research, laboratories, etc. They are used to cool and store drugs, reagents, and other volatile, flammable, and explosive hazardous materials that are not easily stored at room temperature. According to its structure, it can be divided into single door, double door, and multi door, as well as horizontal and vertical types. It consists of a refrigeration compressor, condenser, condenser fan, evaporator, and temperature controller. To ensure its safe use in hazardous locations, we also use composite explosion-proof technology to explosion-proof the refrigerator. The compressor and condensing fan are treated with sealing or explosion-proof technology, and the temperature controller serves as a passive switch and an explosion-proof active optocoupler solid-state relay to form an intrinsically safe temperature automatic control system. To protect the compressor from damage, time-delay explosion-proof solid-state relays, overload protection and thermal protection devices are used, and some control appliances are treated with explosion-proof insulation. To prevent the harm caused by static electricity, conductive paint is sprayed on the inner chamber of the refrigerator to eliminate static electricity effects and make it safer to use
Safer and more reliable use; Set up a closed inner liner with high safety factor; Adopting forced air cooling, rotating fan for circulating cooling, with dedicated fuse protection, and refrigerator designed with internal grounding protection
Applicable scope:
1. This product is suitable for explosive environments such as petrochemicals, laboratories, metallurgy, textiles, food, bioengineering, pharmaceuticals, warehouses, aerospace engineering, and places with temperature control requirements;
Zone 2.1 and Zone 2 hazardous gas locations
3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;
4. Environmental temperature: -5 ℃~+43 ℃.
It can be widely used in hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 in petroleum, chemical, pharmaceutical, aerospace, laboratory, storage and other departments. The BL series industrial grade integrated explosion-proof refrigerator is a Class IIC explosion-proof refrigeration system manufactured using integrated explosion-proof technology according to industrial environmental requirements.
The entire machine adopts ultra weak current technology to isolate intrinsically safe circuits. After process manufacturing and explosion-proof treatment, the design and manufacturing of the product strictly follow relevant standards:
GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"
GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "
GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "
GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "
GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
The product surface adopts surface temperature limit protection technology, comprehensive anti-static technology, and various safety protection technologies;
>>
