Basic Info.
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Fiber Laser
Applicable Material
Metal
Laser Classification
Semiconductor Laser
Laser Technology
Laser Control Fault Cutting
Machine Name
Metal Plate Fiber Cutting Machine
X.Y Axis Repeat Location Accuracy
0.02mm
Driving System
Servo Motor
Control Software
Weihong /Cypcut
Cooling Mode
Water Cooling
Laser Power
1000/1500/2000/3000/4000/6000/8000/10000/12000W
Processing Material
Metal
Power Supply
380V/50, 60Hz
Minimum Cutting Width
0.01mm
Certification
CCC, CE, GS, ISO, SGS
Software Supported
Orted: Ai, Plt, Dxf, BMP, Dst, Iges
Transport Package
Wooden Box
Specification
440cm*540cm*300cm
Production Capacity
300 Sets Per Month
Product Description

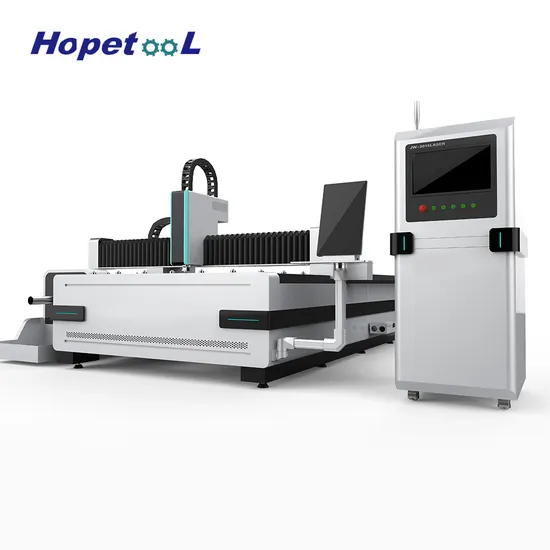

Fast speed cnc fiber laser steel tube cutting machine fiber laser cutting machine high precision
The 3015 fiber laser cutting machine is mainly used for processing metals such as stainless steel, carbon steel, copper, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminum zinc plate, acid washed plate, gold, silver, and titanium board. There are multiple sizes to choose from: 300*150cm, 400*150cm, 300*200cm, 400*200cm, 600*250cm, 800*250cm, and so on. We can provide customization.
The power range of 1530 fiber laser cutting machine ranges from 1000w to 20000W, suitable for the application fields of fiber laser cutting machine:metal sheet processing, advertising label production, electrical box and cabinet production, engineering industry, electrical appliances, various mechanical parts, kitchenware, and home Household goods, automobiles, agricultural machinery, medical equipment,ships, aerospace, lighting,environmental protection industry, screens, office industry, fitness equipment, sheet metal processing and other industries. application
The scope is very broad, making it a choice for the manufacturing and processing industry.
Product Parameters
Model
| Laser cutting machine 3015 4015 3020 4020 6025 8025
|
Working area
| 150*300cm 400*150cm 300*200cm 400*200cm 600*250cm 800*250cm
|
Equipment Dimension
| 440cm*228cm*185cm |
Laser power
| 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/15000W
|
Laser type
| Fiber laser tube,water-cooled
|
Positioning Accuracy (mm) | 0.05mm
|
Cutting speed
| 90m/min
|
Power supply
| 380V/50,60HZ
|
Acceleration | 1.0G
|
Repeatability (X/YIZ) (mm) | 0.02mm
|
Driving system
| Fuji /Yaskawa servo motor
|
Net Weight
| 4000kg
|
Graphic Format Supported | Orted: Ai, Plt, Dxf, BMP, Dst, Iges |
Applicable material
| stainless steel, carbon steel, copper, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy,galvanized plate, aluminum zinc plate etc.
|
The 3015 fiber cutting machine has added a rotary axis, mainly used for processing various metal sheets and metal pipes such as stainless steel, carbon steel, copper, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, aluminum zinc sheet, acid washed sheet, gold, silver, titanium sheet, etc.
Detailed Photos
Lathe bed
The lathe bed is welded with square tubes, With 24 hours quenching process.Italian COLGAR machine milling boring.Increased machining accuracy of the machine
Raytools fiber laser head
Raytools high-power laser head, fast speed, high processing accuracy.
MAX laser source
MAX laser has higher electro-optical conversion efficiency (>30%), higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios:cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.
Servo motor
Fuji or Yaskawa Servo Motors and Drivers with fast dynamic response provides speed and performance stability. The maximum idle speed of the machine can reach up to 120 m/min with the acceleration of 1.5G.
Full stroke chuck
This 3015 fiber cutting machine has added a rotary axis that can process various shapes of metal pipes. Increased the practicality of the machine.
3015 fiber laser cutting machine adopts the Cypcut control system. The system is stable and easy to operate.
French electrical components, pressure resistant and explosion-proof water and air pipes, XY axis flame retardant dust cover, fully enclosed fire protection, high and low temperature trawl net, ensure the safe and stable operation of the machine in special situations.
The professional laser optical system is stable and reliable; Stable programming and control system, easy to learn and user-friendly, compatible with multiple drawing formats, intelligent layout to save costs, automatic cutting path, matching to save processing time; Low energy consumption and low usage cost of the product; The equipment has high stability, simple and convenient maintenance, low maintenance cost, no need for molds, flexible processing, and can meet the processing requirements of various irregular workpieces; Processing requirements for various irregular workpieces.
Customer feedback
Working Samples
Productive process
Company Profile
After Sales Service
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
3.Our engineer can go to customer's factory training
4.Our warranty is 2 years counting from the date when the Machine arrives at the port of destination.
5. We will supply after service 24 hours,customer can contact us any time.
6.When some problems can't be solved by customers, our engineer can go to door to help.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
>>
