Product Description
Product Description

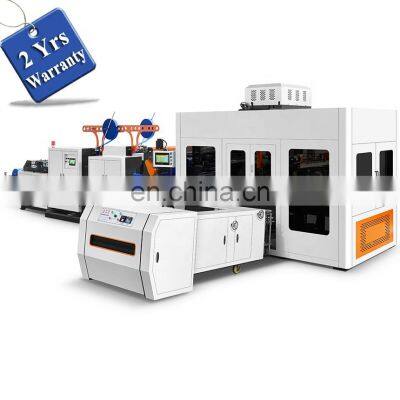

UT21 Automatic PP Spunbond Non-woven fabric cloth Box Bag Making Machine, geotextile 3d stand up eco bag forming machine
Videos
Video demonstration only for reference
Video 01: /watch?v=Yk2fLUZVHqI
Video 02: /watch?v=q-YD58ZYG0A
Product Description
Features:
1, Suits to produce laminated 3D box non woven fabric bag with handle welding online.
2, Equipped with advanced technology by integrating optical, electrical and pneumatic parts.
3, Strong ultrasonic bag sealing and decent box forming to make variety of bags with handle in just one pass.
4, Widely used in non woven wine packaging, beverage packing and gift bag making industry.
5, LCD touch screen display for easy operation, stepping motor for fix length, photoelectric tracking and automatic positioning system for accurate and stable bag forming.
6, Automaticcounting, handle welding, finished bag stacking and alarming for high productivity.
Parameters:
Model
| UT21
|
Speed
| 50-90 pcs/min
|
Mode Replace Time
| 20-60min
|
Raw Material Width
| 1160mm
|
Bag Size
| 8-20cm(Gusset); 18-54cm(Width); 20-45cm(Height) special size can be customized
|
Material Thickness
| 50-120gsm
|
Handle Length
| 32-60cm
|
Air Support
| 1.2m3/min,0.7Mpa
|
Total Power
| 380V, 3 Phases, 35KW
|
Overall Dimension
| 8200x2000x2550mm
|
Weight
| 11000kg
|
Advantage:
Service TeamWe have professional service team to support customers around the world. All questions after using the machine will be responded within 24 hours.
Innovation
Our machine has initiative technical break through for realizing one pass finished nonwoven box bag with handles. The machine speed is equal to what 50 workers can realize, which can bring visual huge benefits for the customer.
Quality
High quality parts built-in guarantees the machine to run more durable and reliable for long service time.
High-efficiency
It only takes 30 minutes to change the mode and the screen can store and save 10 different specifications products.
Detailed Images
Automatic Handle Feed
Automatic Handle Fold and Seal
Bag Side Fold and SealAutomatic Handle Loop Weld
Automatic Handle Loop Gap Adjust
Automatic Sheet Cut
Automatic Box Bag Form & Collect
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Nonwoven thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
