20 24 36 Spindles Double or Single High Speed Steel Wire Braiding Machine for Rubber Hose

Product Description

20 24 36 Spindles Double or Single High Speed Steel Wire Braiding Machine for Rubber Hose
PRODUCT DESCRIPTION

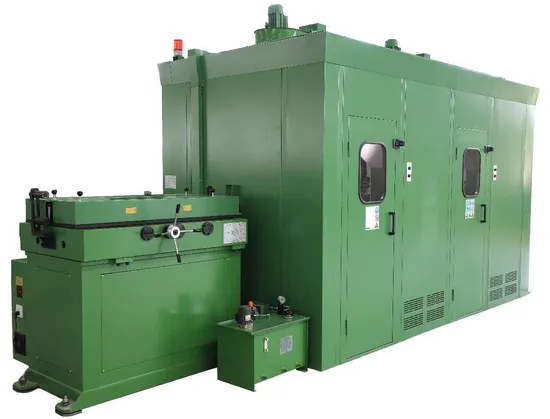

Overview Of BZM Braiding Machine: BZM braiding machine consists of BZM2 and BZM3, in which BZM2 has 2X2 braiding structure and BZM3 has 3X3 braiding structure. The unique structural design, advanced CNC machining level and automatic control of this machine make it have the characteristics of fast braiding speed, good quality, large spindle thread capacity, small tension fluctuation, accurate knitting angle and stable work.

Highlights Of BZM Braiding Machine: 1.The spindle has a large wire capacity: 9KG/ spindle(steel wire)
2.The distance difference between the spindle running from the outer ring to the opposite braid point of the inner ring is compensated by the spindle compensation device, which can control the theoretical tension difference of the fabric to be not less than 76-90% of the spindle pay-off tension. Spindle pay-off adopts stepless pay-off structure, which has long service life and low failure rate.
3.Fast running speed.
4.The main engine and the tractor are driven by their own motors. Through PLC control and good man-machine interface, the speed of the main engine and the tractor is effectively controlled to obtain the best braid process requirements.
5.Slow tram drive function
6.Separate drive function of tractor.
7.Automatic lubrication system.
8.Broken wire detection, tube blank detection, medium film detection and tension detection device, and automatically alarm/stop if there is any problem.
9.Intelligent fault alarm/parking prompt function.

Parameters Of BZM Braiding Machine:

Equipment Type	BZM2			BZM3
Braid Structure	2X2			3X3
Spindle Number	16	20	24	18	24	36
Maximum Speed (rpm)	56.20	45.00	37.50	75.00	56.25	37.50
Center Height (mm)	1275	1275/1125	1345	1275/1125	1345	1365
Braiding Diameter (mm)	6~19	8~23	11.5~31	8.5~23	11.5~31	15~45
Wire Capacity (Steel Wire)	9Kg	9Kg	9Kg	9Kg	9Kg	9Kg
Total Power (kW)	15	15	15	16	20	28

---
