Machinery Multi-Dryer and Fourdrinier Wire Corrugated Paper Making Machine

Product Description

Multi-dryer and Fourdrinier wire Corrugated Paper Making Line
I. Technical parameter

Raw materials	recycled paper, wood pulp
Output paper	corrugated paper
Output paper weight	90-200gm2
Capacity	80 TD
Fourdrinier wire width	3700mm
Net paper width	3200mm
Working speed	150-200m/min
Designing speed	250m/min
Rail gauge	4300mm

II.The main structure with spec
1. Fourdrinier part: 16m fourdrinier table, the frame coated by stainless steel. 1 set of Φ850mm×3500mm vacuum couch roll.
2. Press part :
1) K press part
Top roll: 1 pc of Φ850mm×3300mm×4000mm natural marble roll.
Bottom roll: 1 pc of Φ800mm×3300mm×4000mm rubber roll,
Vacuum roll: 1 pc of Φ800mm×3500mm rubber roll, rubber shore hardness 95ºC±2.
2) Large roll press part
Top roll: 2 pcs of Φ1250mm×3300mm×4000mm rubber roll
Bottom roll: 2 pcs of Φ1250mm×3300mm×4000mm rubber roll, rubber shore hardness 98ºC±2.

3. Dryer part: 20 pcs of Φ1500×3300mm×4000mm dryer cylinder, 20 sets of blade, 4 sets of Axial-flow ventilator.

4. Calendaring part: 1 set of three-roll calendar with top roll Φ500, middle roll Φ450, and bottom roll Φ550.

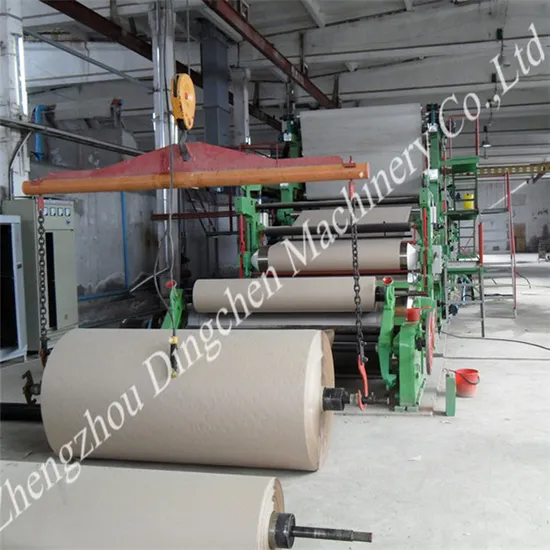

5. Winding and rewinding part: 1 set of Horizontal winding machine with winding cylinder Φ1100×3200mm, 1 set of high duty frame type rewinding machine.


Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping
