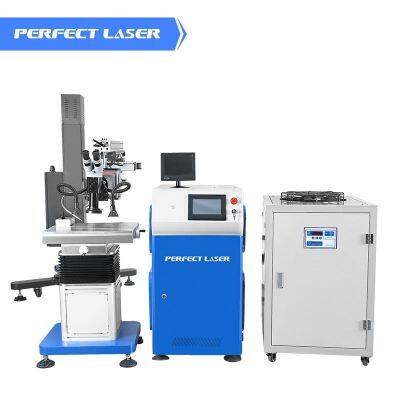

Perfect Laser Suspension Arm Type Laser Welder for Mould Die Repair

Product Details

Product Description

Product Description
Product Introduction
Perfect laser is specialized in welder's research and development, production, sales, training, after-sales service. Our new welder production named Suspension Arm Type Laser Welder for Mould Die Repair, this welder is designed with cantilevered laser cavity, this types of welding machine different from the original welder, in order to adapt to high strength and high hardness materials welding .At the same time in order to ensure the continuity and uniformity of welding joints, we increased mold two-dimensional table, to achieve higher difficult processing.
Product Features
1. The introduction of German technology, the user-friendly design of whole machine, is more suitable for all kinds of large and medium mold repair.
2. This types of welding machine use of British imports of ceramic condenser cavity, with high reflectivity, corrosion resistance, high temperature, the service life is up to 8-10 years, xenon lamp life of 800 million times.
3. The welder use of the world's most advanced high-speed LCD light valve filter automatic protection system, eliminating the time in the work of the eye irritation.
4. This types of welding machine with a cross-cursor stereoscopic microscope, the welding position to enlarge 10 times, (optional 15 times, 20 times). Cross the center of the cursor and the laser spot center overlap, easy to locate.
5. The welder with high-power integrated chiller, to ensure that the whole machine for a long time high-power stable working conditions.
6. Parameter adjustment using intelligent handle remote control, simple operation.
7. 12 directions can be adjusted controlled by computer, this types of welding machine is suitable for all kinds of mold repair welding.
Application
Suspension Arm Type Laser Welder for Mould Die Repair is suitable for large, medium and small molds of welding, aluminium welding. This types of welding machine is widely used in chassis, automobiles, tires, ships, large household appliances plastic shell, auto parts, bearings, construction machinery and other mold manufacturing and molding industry. This types of welding machine can repair welding a variety of mold steel, stainless steel, cymbals steel, precious metals and hard materials, aluminium welding. Precision injection molding, die-casting, mold repair and accessories, precision stamping parts of the welding, lost wax castings, aluminum castings, stainless steel products sand hole.
Technical Data

Model	PE-W600D
Input voltage	Three-phase four wire system，380V±5%
Maximum input power	16KW
All mirror	reflectivity≥99.7%
Power feedback type	current feedback
Condenser cavity	Gold single cavity design, double lamp single rod
Laser wavelength	1.064μm
Beam divergence angle	≤8mrad/m
Peak output power	300W -600W
Laser head adjustment	360 degree
Pulse frequency	1~150Hz
pulse width	0.1~20ms
Current regulation	50-500A
Beam expander	3 times
Focal spot diameter	0.2-2mm
Cantilever stretch length	900mm
Cantilever up and down travel	1000mm
Cantilever XY electric stroke	150*150mm
Laser cavity length	600mm
Table size	X*Y=500mm*350mm
Table travel	200mm
Table XY hand travel	250*120mm
Display mode	CCD Camera
Positioning mode	Red

---
