High Quality Moving Man Lifting Equipment Aerial Platform Scissor Lift Table 6m

US$5,000.00
1-9 Pieces
US$4,200.00
10+ Pieces

Basic Info.

Model NO.
6M Scissor Lift
Application
Workshop Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Lifting Height (M)
6
Table Size (M)
2.10X0.83
Cylinder
80*1
Power (Kw)
1.1
Voltage (V)
220/380
Weight (Kg)
880
Guardrail Height
1.1m
Transport Package
Standard Export Package or as Your Required
Specification
Scissor Lift Platform
Trademark
zhongmei
Origin
Shandong, China
Production Capacity
10 Sets Per Month

Product Description

Hot Sales
Product Description
Introduction Of 6M Factory Warehouse Mobile Track Sissor Lift Carrier Movable Hydraulic Elevation Movable Lifts Table Scissors Platform With CE
Self propelled small Scissor Lift is equipped with two kinds of motors, hydraulic lifting motor and electric driving motor. Hydraulic lifting motor supply power to lift up and down smoothly. Electric driving motor supply power to move forward,back off, turn around.zmwm21
Product Parameters
Parameter Of 6M Factory Warehouse Mobile Track Sissor Lift Carrier Movable Hydraulic Elevation Movable Lifts Table Scissors Platform With CE
Load Lifting
Height (M)		 Table Size
(M)		 Dimensions
(M)		 Cylinder Power
(KW)		 Voltage
(V)		 Weight
(KG)		 Guardrail Height Tire Size
500KG 4 2.10x0.83 2.25x0.95x1.10 80*1 1.1 220/380 800 1.1M 400-8
6 2.10x0.83 2.25x0.95x1.20 80*1 1.1 220/380 880 1.1M 400-8
7 2.10x0.83 2.25x0.95x1.28 80*1 1.1 220/380 970 1.1M 400-8
8 2.10x0.93 2.25x1.06x1.38 80*2 1.5 220/380 1050 1.1M 400-8
9 2.10x0.93 2.25x1.06x1.50 80*2 1.5 220/380 1165 1.1M 400-8
10 2.10x1.23 2.25x1.35x1.53 70*4 2.2 380 1360 1.1M 500-8
11 2.10x1.23 2.25x1.35x1.65 70*4 2.2 380 1400 1.1M 500-8
12 2.55x1.53 2.80x1.67x1.75 80*4 3.0 380 2260 1.1M 500-8
14 2.81x1.53 3.07x1.73x1.81 80*4 3.0 380 2400 1.1M 500-8
16 2.81x1.60 3.07x1.81x2.08 90*4 3.0 380 3500 1.1M 700-9
18 3.07x1.60 3.32x1.81x2.08 90*4 3.0 380 3900 1.1M 700-9


Detailed Photos

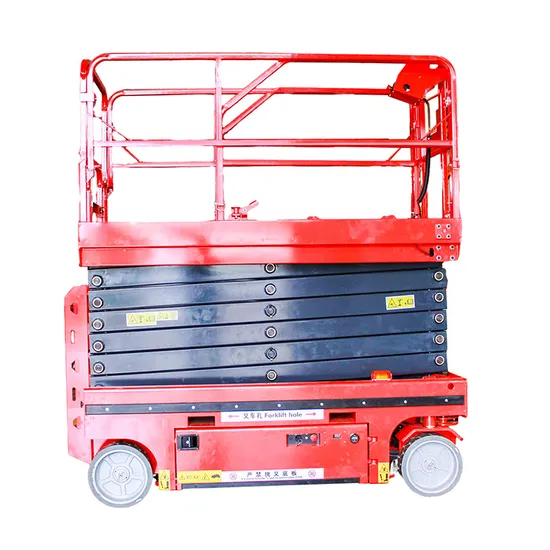

Photos of 6M Factory Warehouse Mobile Track Sissor Lift Carrier Movable Hydraulic Elevation Movable Lifts Table Scissors Platform With CE
