Regulating Valve Fully Welded Ball Valve Handle\Turbine Ss\CS Heating\Gas Ball Valve V-Shaped Ball

Product Description

Product Description

Body	20#/A105/F304/F316/F304L/F316L
Ball	20#/A105/F304/F316/F304L/F316L
Seat	A105//F304/F316/F304L/F316L
Stem	2Cr13/A105/F304/F316/F304L/F316L
Sealing ring	PTFE/NYLON/PEEK
O-ring	VI TON/NBR
Screw	B7M/B8M/L7M/B16M
Support cover	A105/F304/F316/F304L/F316L
Die holder	A10/F304/F316/F304L/F316L
Spring	17-4PH/17-7PH/Inconel
Bearing	304+PTFE/316+PTFE
Gaske	Flexible graphite+304/PTFE

Product Usage
Fully Welded ball valves with integral welded valve bodies can effectively avoid external leakage. Welded ball valve is widely used in various fields, its superior quality and high performance stability is ordinary cast steel ball valve can not reach, all-welded ball valve service life is far greater than cast steel ball valve, all-welded ball valve is widely used in city gas, city heating, petrochemical, shipbuilding, steel, pressure regulating stations, power plants and other types of pipeline equipment.
Welded ball valves are generally available in blue, yellow, grey, black and other colours. Transmission methods include handle, worm gear, pneumatic, electric, etc.
Applicable Standards
1 Design & Manufacture Conform with: API 6D/ ISO 14313, ASME B16.34
2 Connection Dimension Conforms with: ASME B16.25, DIN EN 12627
3 Fire Resistance Design Conforms with: API 607/ISO 10497
4 Inspection & Test Conforms with: API 6D, ISO 5208, API 598
5 Material Conforms with: ISO 15156
Fully welded ball valve applications
1.City gas: gas output pipeline, main line and various branch supply pipelines, etc.
2.Central heating: large heating equipment output pipelines, main lines and branch lines.
3.Heat exchangers: pipelines and various circuits opening and closing.
4.Steel plants: various fluid pipelines, waste gas selective discharge pipelines, gas and heat supply pipelines, fuel supply pipelines.
5.Various industrial equipment, various heat treatment pipelines, various industrial gas and heat pipelines.

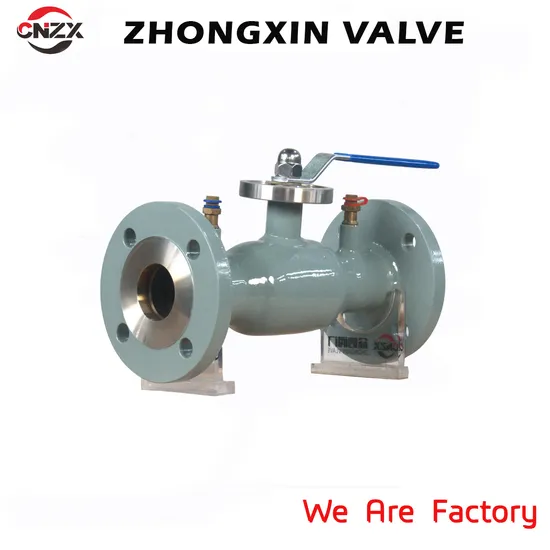

Detailed Photos
Company Profile
China Zhongxin Valve Co., Ltd. is located in China Valve City, Wenzhou Longwan Binhai Park. It is a fully welded ball valve series that integrates research and development, production and manufacturing, sales and service as its main focus.Professional manufacturer of products, hydraulic valve series, and butterfly gate cut-off series. The enterprise has advanced production equipment, complete supporting facilities, and adopts advanced production processes and technologies, with international quality assurance andControl processes and advanced production and operation management to ensure that products are qualified and leave the factory. At the same time, it has also received unanimous praise from both new and old customers!
At present, our products include: integrated fully welded ball valve, directly buried fully welded ball valve, double release welded ball valve, natural gas ball valve, flange welded ball valve, welded filter, hydraulic control
Valves, locking valves, gate valves, globe valves, butterfly valves, check valves, etc. Product caliber: DN15-DN1600; Working pressure: 0.6MPa-42MPa; Working temperature: -196 ºC-+550 ºC. Materials: carbon steel, alloy steel, heat-resistant steel, stainless steel; Operation methods: manual, gear, electric, pneumatic, hydraulic, etc. The main products meet the requirementsANSI,API,EN,BS,DIN,ASME,ISO According to relevant technical standards in different fields and countries, our products are applied in petroleum, chemical, natural gas, thermal, shipbuilding, and electricity industriesIndustries such as power, pharmaceuticals, metallurgy, food, mili tary, and construction engineering.
Certifications
Packaging & Shipping
Our Advantages
Professional manufacturing fully welded ball valves. Our strengths lie in prompt delivery, assured product quality, guaranteed project timelines, competitive pricing, and a large, technologically advanced manufacturing facility. Each product undergoes rigorous testing to ensure compliance before delivery. Our commitment extends to excellent post-sales service, making us a trusted choice in the industry.
FAQ
Q:How long is the product warranty?A:In 24 months, we will provide you with replacement or repair services for other problems except for quality problems caused by human causes.Q:Are wholesale discounts available?A:Wholesale discounts are available on large quantities of valves, usually related to purchase quantity. You can contact customer service or email us for discount information.Q:Does it support customized valve needs?A:Custom valve services are available to meet specific needs. You can consult the customer service department of the website or contact us to learn about customized services and corresponding processes and prices.Q:How is your price?A:Although we have brand-name products, our prices are very favorable and competitive.Because of our best price, customers from all over the world come to purchase our products.Although we have brand-name products, our prices are very favorable and competitive.Because of our best price, customers from all over the world come to purchase our products.Q:Are you trading company or manufacturer ?A:We are the manufacturer, the factory.Q:Can I request to change the form of packaging and transportation?A:Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.Q:Is the delivery time fast?A:Our delivery time is remarkably fast! Besides ensuring top-notch quality, one of our major advantages is the quick turnaround on orders. At our factory, we maintain numerous large warehouses exclusively for our stockists. We have readily available stock in various sizes ranging from DN15 to DN1200. With such extensive inventory, we can confidently promise swift delivery times. Typically, production for your orders will be completed within 4 to 5 days. By choosing us, you can rest assured that your projects won't face delays, and your clients won't have to endure long waiting periods. In summary, our strengths lie in using top-quality raw materials, delivering aesthetically appealing products, employing secure packaging, conducting rigorous testing, and, above all, ensuring prompt delivery times. Q:How many years has your company been established?A:Our factory has more than 30 years of production experience.

---
