Electrostatic Powder Painting Machine/Powder Coating Oven with CE Certification

Product Description

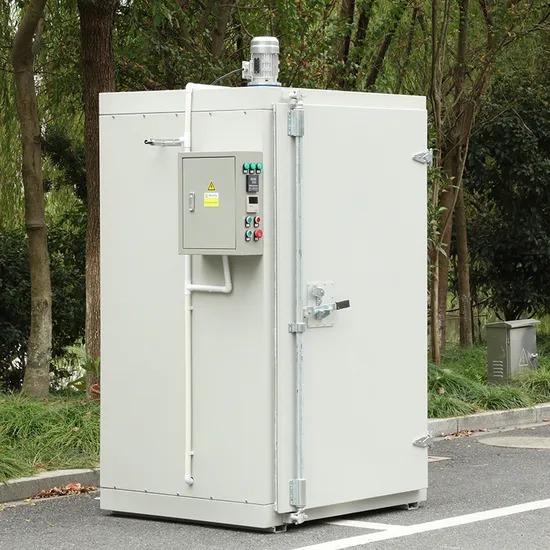

Electrostatic Powder Painting Machine/Powder Coating Oven With CE certification Brief of COLO powder coating oven:
Powder Coating Ovens supplied by COLO are used for curing powder on metal substrates, such as aluminum extrusions, sheet metal and various metal geometric shapes. When a thermoset powder is exposed to elevated temperature, it begins tomelt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.

Structure:consist of Body,insulation, cover, heater. use gas to create the energy ,through the circulating fan ,make the temperature in the oven to rise uniformly. Then make the temperature of workpiece to rise.
built-in track to roll your powder coating racks into the ovens could be ordered together as you required.
Specification of the powder coating oven:

Worksize dimensions	1000width x 1600 height x 845 depth
Overall dimensions	1160 width x 2200 height x 1100 depth
Power supply	Electric/ 6.55kw
Voltage/Frequency	110V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3-5°C
Temperature max.	250° C
Motor power	0.55kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Ventilation performance	805-1677m3/h

Products Details
1.Great fan motor One set of heat resistant fan for circulating the hot air,maintains a uniform temperature in oven
2.use great electricity tube ,take short time to heat.
3. control, accurate cure timing and helps improve fuel efficiency.
4.Optional insulated floor is comprised of 100 mm thick layer of insulated fibres and a steel plate cover, which allows trolleys to be used to carry products in and out of the oven.
5.with 2 shelves ,5 movable rails per shelf

Drawing
Shipping
Customer Visiting&Exhibition We have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business . Buying Guide
If you are interested in this product ,pls feel free to contact us
Address : No.57 Xiangcang RD,Xihu District,HangZhou city, China

---
