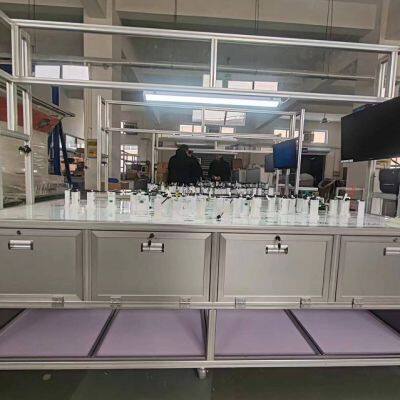

Automotive Wire Harness/Cables Clips(Ties) Assembly Instructing & Testing Table

Product Details

Product Description

Product Name	Clip operation Instructing & Testing Bench Top
Power	Electricity
Type	OEM/Customized
Brand Name	Cleanknow/Customized
Model Number	SHQN
Display	Monitor Size on demand
Interface	USB Interface/Manual

Overview:
This Bench top(Table) is a catered designing for the structure of automotive wiring harness CLIP, using modern computer and database technology to be adapted to the flexible design of automotive wiring harnesses, a testing equipment with special function (known as KSK function).
Operation to this Bench Top(Table) is simple and convenient.
The results of the testing are stored in the database.
Relevant departments can analyze the quality of products, detecting product quality issue quickly and take corresponding steps to accordingly improve the quality of wire harness products.
Specification and working environment:

Item	Specification & Working environment
Basic Bench Top size(Reference size)	LXW=4000X1200MM (Scalable)
Testing points	128-3072 points
Ambient temperature	0℃~～40℃
Relative humidity	<85%RH
Operation voltage	AC220+22V 50+1HZ 10A
Air conditions requirement	No corrosive gas, well ventilated
Lightness requirement	Away from strong magnetic fields and direct sunlight
Location	No less than 600mm from the wall, no less than 1000mm from heating equipment
Equipment grounding	Well grounded

Bench top function view:
1: KSK function
2: Self learn of each clip and can be self defined
3: Combine different clip modules to compose a new testing module
4: Direct log in the testing procedure by scanning QR code of a wire harness
5: The interface will promptly show error information if any error occurs during the
testing process.
The error information will automatically refresh after the correct revision
6: Each testing result will be saved in the database
7: Indicators on the bench top will indicate the wrong positioning of plugs and the fault points
8: After passing the testing, the whole wire harness will be ejected off, as long as printing the qualified label
Technical setting:
1: Hardware Setting up
2: Hardware self-inspection
3: Module editing
4: Program module editing
5: Testing editing
