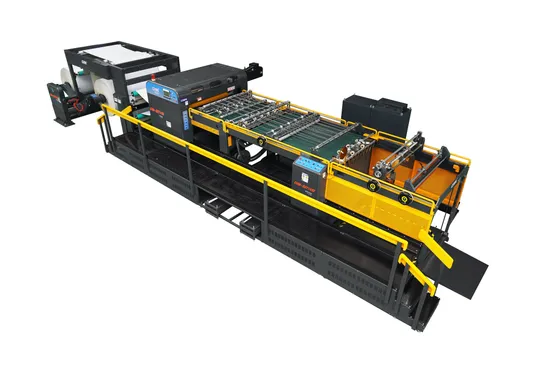

Chm Sheeter, Paper Sheet Cutter for Board

Product Description

We have three factories in China and total area more than 150000 square meter.
FEATURE OF PRODUCT

Middle Slitting And Waste Edge Collecting System
1)Style
Adjustable slitting knife and exhaust tube for waste edge on both sides
2)Top slitter
Adjustable up or down, slitting width can be adjusted by manual
3)Bottom slitter
The slitter are fixed, slitting width can be adjusted by manual
4)Windmill: driven by 1.5kw motor
5)Type-Y collecting pipe for waste edge
Auto slitting knife of Maxcess Brand optional

High precision Double rotary sheet cutter
1)Top and bottom Tool Apron
Adopting cutting way of British, so as to decrease noise
and load and prolong life of knife,
2)Main driving roller: grainy surface, controlled by the air
Pressure so as to grip the paper
Auto-tension control
Put the paper roll diameter and paper weight number into
touching screen, the tension will be controlled by computer
automatically
Auto-EPC(Edge Paper Control)
Precision sensing nozzle which easily available and sensitive
Fast detects various web lines for EPC system.

Model		CHM-SGT1400
1. Type of cutting	:	Top blade and bottom blade rotary
2. weight of paper	:	200-1000 GSM
3..reel diameter	:	Max 1800mm(71")
4. Finished width	:	Max 1400mm(55")
5. Finished sheet-Length	:	Min.450-Max.1450 mm
6. Num. of rolls cutting	:	rolls
7. Cutting accuracy	:	±0.5mm(L<1000mm) ±0.1% (L≥1000mm)
8. Max. speed of cutting	:	300cuts/min
9. Max. cutting speed	:	300m/min
10. Requirement of the air pressure	:	0.8MPa
11. Voltage	:	AC380V/220Vx50Hz
12. Total power:	:	77KW
14. Output	:	The real output depend on the material, and the weight of the paper, and right operate process

17 YEARS PROFESSIONAL SHEETER MANUFACTURING EXPERIENCE AND CUSTOMER COMES FROM MORE THAN 70 COUNTRIES.

INSTALLATION IN CHM 'S CUSTOMER FACTORY

---
