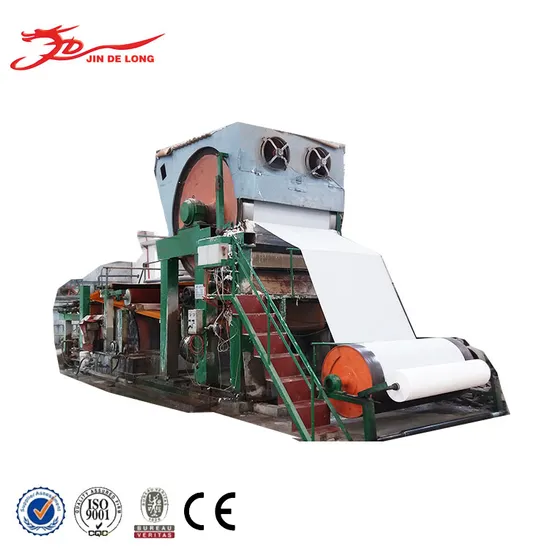

1092mm High Speed Fully Automatic Toilet Tissue Paper Making Machine Jumbo Roll Production Line Price

Product Description

1092mm Toilet Paper Making Machine Production Line Waste Paper Recycling Machine
Products Description
Toilet paper machine adopts forward pulp hang type to feed pulp. Paper machine mainly consists of felt washing, cylinder mould part, drying part, reeling, driving and gas hood. Speed of the equipment is fast and paper quality is good. Easy to operate and no training for a long time. Toilet paper machine mainly divided into these parts: headbox, fourdrinier wire part, press part, drying part and reeling part.
We have toilet paper making machine models for 787, 1092, 1575, 1880, 1760, 2880, 2100, 2400, 2880, 3200, 3600, 3900, etc. We accept customization. The machine uses waste paper as raw material, and the price is related to the configurations such as capacity, paper width, and paper weight.
Note:In order to give you the exact design and offer, kindly advise your below requirements for this paper machine:
·What kind of paper do you want to produce?
·What raw materials will you use to produce the paper?
·What is the paper GSM·What is the paper trim width?
·What is the daily capacity (ton/day) of the paper?
·What is your land size for this paper mill? Product Paramenters

Product name	SL-1092 toilet paper making machine
Raw material	Wood pulp,waste paper
Finished products	Toilet paper
Paper width	1092mm
Paper weight	14-35g
Working speed	50-80m/min
Transmission mode	Reducer drive
Design speed	100m/min
Yield	2-3 t/d
Power	7.5kw

Structure and characteristics of 1092mm toilet paper machine 1.Cylinder section:Φ1000mm×1100mm stainless steel cylinder mould 1set, Φ260mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.
2.Dryer section:Φ1250mm×1100mm cast iron alloy dyer can 1 set, Φ300mm×1100mm touch roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical pressure device.
3.Paper cutting section: 1092mm slitting machine1set .
4.Drive and control section: Alternating current , speed control , section drive. Raw Material & Finished paper :
Wood pulp, waste white shavings, waste notebook, waste paper with ink as raw material.
Production flow chart reference
Details Images
Company Information
1. How long it will take to get the quotation? --We usually give reply within 24 hours after getting your inquiry. If you are urgent to get the quotation, please feel free to contact us by email, then we can reply you as the first priority. 2.How long is your warranty? --All our products will have one year guarantee and we will continue to offer advice and spare parts after this period.Within 1 year after receiving our machines, under right operation and non-artificial reasons, If there are any damaged parts or accessories, we will replace them by air-mail or express immediately free of charge.After 1 year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, we are responsible to solve this problem soonest, and help customers to restore production as soon as possible. 3. Can you make paper mill design for us? --Yes, we have professional team with rich experience of paper mill design by CAD software. You only need to tell us your open land dimension, we will make your future paper mill design. 4. What's the payment terms? --30% initial payment when place your order, 70% balance payment before shipment. 5. How about your machine quality, we are worry about the quality. --Shilong is a mature brand in china, 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System. And can match all the CE standard or more strict standard. Our paper machine is running well in more than 30 countries.

---
