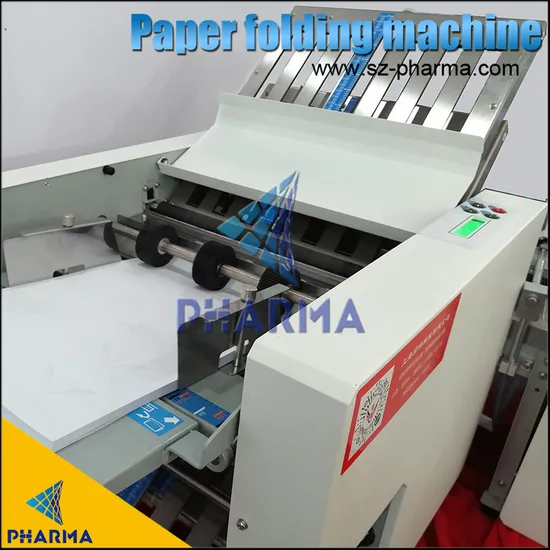

Basic Info.
Product Name
A3/A4 Paper Folding Machine
Min. Paper Size
50 (W)X50(L)mm
Max. Paper Size
220(W)X360(L)mm
Paper Type
50g-120g Fine Quality Paper
Paper Loading Capacity
200-300 Sheets
Application
Manual/Leaflet
Function
Counting and Folding
Power Supply
220V 50/60Hz
Counter
4 Digits (Ascending), 3 Digits (Descending)
Feeding Mode
Friction Feed
Delivery
by Sea, Air, Express
Transport Package
Export Wooden Case
Specification
670*360*425mm
Production Capacity
100sets/Week
Product Description
| Feeding Mode | Friction feed |
| Power supply | 220V 50/60Hz 0.4A 40W |
| Paper Size | Max.220(W)x360(L)mm Min.50 (W)x50(L)mm |
| Paper Type | 50g-120g Fine quality paper, Recycled paper |
| Folding table quantity | 2 |
| Counter | 4 digits (ascending), 3 digits (descending) |
| Speed | 160 sheets/min. (220V, A4 fine quality paper 80 g/m2) |
| Paper loading capacity | 300sheets |
| Dimensions | 670 (W)× 360 (D)×425 (H)mm |
| Net weight | 19kg |
This automatic folding machine is suitable for fast printing centers, pharmaceutical factories, cosmetics factories,
manufacturing companies, brochures, official documents, business letters. Main features
Machine adopts imported infrared sensor switch, which has high sensitivity, accurate paper separation and no double sheet;
The paper feeding pressure is adjusted in four gear positions to meet the different specifications of paper feeding smoothly,
suitable for coated paper folding;
There is a counter to count the number of origami, and automatically stop when the set value is reached;
This machine adopts advanced full belt gearless transmission system with low noise;
With circuit overload protection function, it will automatically power off and stop when overloaded.
>>
