Portable Adjustable Temperature Freeze Dryer for Home and Travel Use

Product Description

Product Description

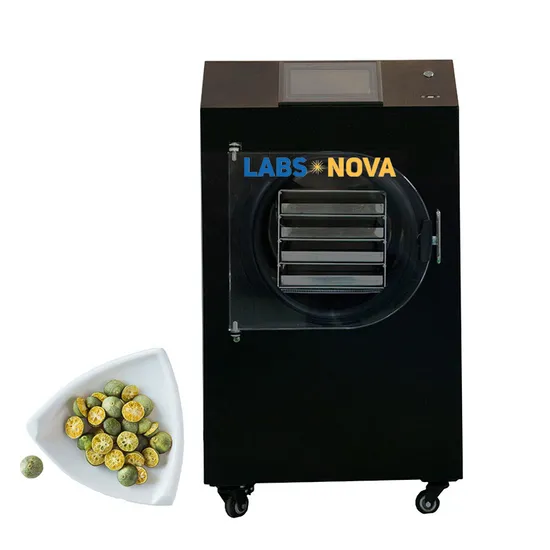

Introducing the Household-type Freeze Dryer, an innovation in home preservation.
This remarkable appliance, also known as
a home freeze dryer,is a compact and efficient small vacuum
freeze dryer. Perfect for families and online shops, it is ideal for small-scale freeze-drying.
This versatile machine is suitable for a myriad of applications including fruits, meats, vegetables,Chinese herbal medicines, health products, and more.
Lyophilization or freeze drying is an advanced process where water is meticulously removed from a product after being
frozen and placed under a vacuum. This allows the ice to transition directly from solid to vapor, bypassing
the liquid phase entirely. This sophisticated process encompasses three distinct yet interdependent stages:
freezing, primary drying (sublimation), and secondary drying (desorption).
Product Parameters

Product Model	WK-HF1	WK-HF4	WK-HF6	WK-HF8	WK-HF10
Freeze-dried Area	0.2	0.55	0.6		1.2
Cold Trap Coil Temperature	<-40ºC (no-load)
Ultimate Vacuum	15pa (no-load)
Power Supply	220V 50HZ or110V 60HZ
Power	1100W	1500W	1800W	2200W	2300W
Handling Capacity	1-2KG / batch	4-6KG / batch	6-8kg / batch	15-20kg / batch	15-20kg / batch
Weight	110KG	150KG	175KG	195KG	200KG
Tray NO.	Three layers	Four layers	Four layers	Eight layers	Ten layers
Dimension	400mm x 550mmx 700mm	600mmx 640mmx 900mm	640mm x 710mm x 1200mm	635mm x 723mm x 1300mm	635mm x 723mm x 1300mm

Integrated structure, small size, easy to use, no leakage

Materials in contact with the product meet food grade requirements

The cold trap is made of stainless steel, which is anti-corrosion and easy to clean

With sample pre-freezing function

The cold trap captures ice evenly; strong ice capture ability

International famous brand compressor, which are high efficiency, energy saving, long service life, low noise.

Well-known brand vacuum pump, which are high pumping speed and higher ultimate vacuum.

Intelligently record and export data

1.Embrace an elegant and compact design, embodying sophistication in a stylishly small package, perfect for enhancing any space with a touch of elegance;
2. Experience the convenience of a crystal-clear plexiglass door, granting you seamless access to monitor the exciting lyophilization process with ease;
3. Crafted with precision, our device features SUS304 stainless steel in both the plate and liner, ensuring unparalleled safety and reliability for peace of mind;
4. Discover the durability of an acrylic door equipped with a flexible hinge, designed to maintain a flawless vacuum seal for optimal performance;
5. Benefit from imported key components that guarantee low noise, high capacity, and unparalleled performance, transforming your freeze-drying experience;
6. Delight in the convenience of a user-friendly touch screen, offering effortless operation with a one-button start and automated control for a seamless freeze-drying process;
7. With real-time adjustable freeze-drying settings, enjoy the precision of comprehensive data and curve displays, ensuring meticulous monitoring and control;
curve can be displayed.
8. Experience innovation with a system designed for minimal operating current and superior energy efficiency, reducing environmental impact while maintaining performance;
9. Utilize one-button rapid defrosting technology, complete with automatic over-temperature protection for peace of mind and operational safety;
10.Rely on a commercial-grade vacuum pump for quiet operation, with the option of an oil-less vacuum pump for a cleaner technology solution.
Product Display
Application Field
Company Profile
Zhengzhou Labsnova Technology Co., Ltd.Founded in 2023, Zhengzhou Labsnova Technology Co., Ltd. is a leader in the manufacture of top-tier extraction and
distillation equipment, offering solutions from lab scale units to expansive full production scale systems.Our standout product line boasts the cutting-edge Freezer Dryer, versatile Rotary Evaporator, durable Glass Reactor, efficient Heating & Cooling Circulator, and dependable Water
CirculatingVacuum Pump, premium Vacuum Drying Oven, and the advanced Low-temp Cooling Liquid Circulating Pump, among others. Our
pioneering products have made a remarkable impactacross international markets, including Asia, Europe, and America. Within China, we have a strong presence in many prestigious laboratories.Renowned for our outstanding quality, Zhengzhou Labsnova Technology Co., Ltd. has risen to be one of the most sought-after and dependable brands in the industry. As a committed manufacturer, we provide
bespokesolutions crafted to meet your unique requirements. Our unwavering dedication to quality and superior service has fostered numerous repeat business
relationships with our clientele. A substantial part of our standardproducts is kept in stock for prompt shipment and delivery.
Related product
FAQ
1. What is the period, scope, and condition of the warranty?(1) We proudly offer a 1-year warranty, effective from the date of shipment originating from China. During this warranty period,
if any manufacturing or quality issues arise,we are delighted to provide comprehensive replacement and maintenance services.(2) Any damage incurred during transportation will be the responsibility of the seller.2. How do we solve issues with your equipment?Please email us with detailed information about the problem. Including pictures or a short video will be greatly advantageous.
We will swiftly identify the issue and provide expert guidance on how toresolve it. If any part is broken, we will provide a
new replacement part free of charge within the warranty period.3. How are replacement parts shipped?Based on the actual situation, we will select the most suitable shipping methods. For smaller
parts, we frequently ship via Express services.4. Can you provide customization services for us?As a manufacturer, we proudly offer an extensive array of customized services to meet your unique needs.

---
