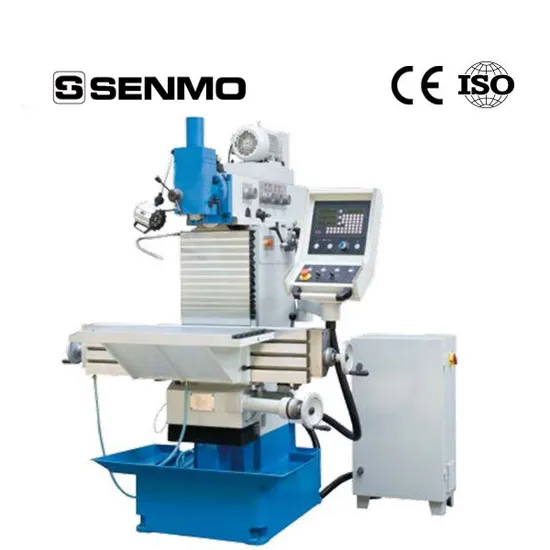

| Universal Tool Milling Machine X8130,X8140 Feature |
| ·Original structure, broad versatility, high accuracy, easy to operate |
| ·With various attachments to extend range of application and raise utilization |
| ·With programmable digital display system,resolving power is up to 0.01mm |
| Specifications | X8130 | X8140 | |
| Horizontal table | Working surface (LxW) | 700x300mm | 800x400mm |
| T-slot(no./width) | 5/14 | 5/14 | |
| T-slot distance | 60mm | 63mm | |
| Vertical table | Working surface (LxW) | 800x220mm | 1200x250mm |
| T-slot(no./width) | 2/14 | 3/14 | |
| T-slot distance | 120mm | 630mm | |
| Distance from table surface to bed guide way | 188mm | 165mm | |
| Max table travel | Longitudinal(X) | 405mm(Manual) 395mm(Auto) | 550mm(Manual) 540mm(Auto) |
| Vertical(Z) | 390mm(Manual) 380mm(Auto) | 410mm(Manual) 390mm(Auto) | |
| Max table load | 160kg | 200kg | |
| Spindle | |||
| Horizontal | Taper | ISO40 | ISO40 |
| Distance from spindle center to horizontal table surface | 30-415mm | 185-585mm | |
| Vertical | Quill travel | 80mm | 80mm |
| Distance from spindle center to vertical table surface | 60-445mm | 145-545mm | |
| Swivel angle of milling head | ±60° | ±60° | |
| Distance from Spindle center to bed guide way(Max) | 488mm | 565mm | |
| Cross travel of spindle slide(Y) | 200mm | 400mm | |
| Spindle speed/step(V/H) | 40-1600/12r/min | 40-2000/18r/min | |
| Feed(X/Y/Z) | Feed speed | 0-310mm/min (stepless) | 5-500mm/min (stepless) |
| Rapid speed | 1200mm/min | 1200mm/min | |
| Power | 1.3kw | 1.3kw | |
| Max.tool dia. when using hanger | Φ150mm | Φ150mm | |
| Coolant pump motor power | 0.9kw | 0.4kw | |
| Spindle motor power | 2.2kw | 3kw | |
| Overall dimension | 128x121x182cm | 164x150x195cm | |
| Machine weight | N.W | 1100kg | 1400kg |
| G.W | 1250kg | 1600kg | |
| Package dimension | 156x140x210cm | 172x160x213cm | |
