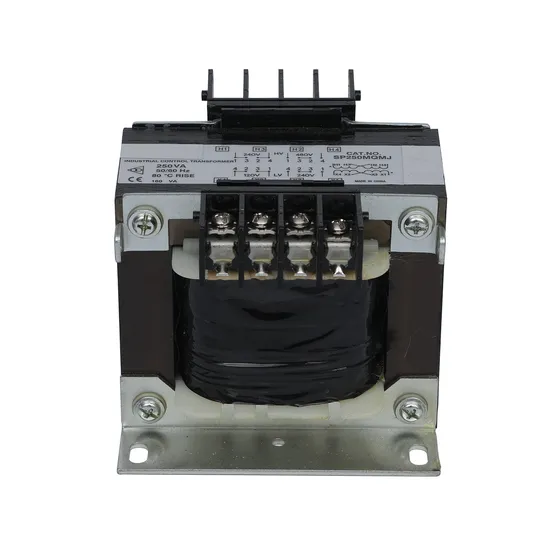

220/380/440V to 110V 115V 120V 50va to 1kVA Industrial Control Transformer

Product Description

Product Features We offer a complete line of control transformers for machine tools, electromagnetic devices, and industrial applications, which include multi-tap, step-up, step-down, open core, and encapsulation. Our control transformers are constructed with high-quality silicon steel lamination to minimize core losses and increase efficiency. Ranging from 50VA to 5000VA, our control transformers offer international primary and secondary voltages. Encapsulated version is also available
Customization: Create your own configuration Terminal Block: Finger-safe terminal blocks with isolation barriers to prevent arc over (configurable to accommodate various wire gauges), for easy installation with ring terminals. Insulation Class: Class B (130°C) I/O: Available with single or dual primaries or secondaries Mounting: Comes with heavy steel mounting feet for various mounting dimensions. Din Rail Mounting is also available Input Voltages Available: 100/110/120/208/220/230/240/277/347/380/400/415/440/460/480/550/575/600/690V Output Voltages Available: 12, 23, 24, 25, 28, 95, 115, 120, 230, 240V Frequency 50/60Hz VA range varies: 50VA-5000VA Certification: ETL (UL5808 & CSA C22.2#66.1), CE(EN61558-2-4) Specs

Input Voltage	100/110/120/208/220/230/240/277/347/380/400/415/440/460/480/550/575/600/690V
Output Voltage	12, 23, 24, 25, 28, 95, 115, 120, 230, 240V
Power Range	25VA-10KVA

About us We focus on manufacturing landscape lighting transformers, magnetic led drivers, pool light transformers, and a wide range of power transformers for landscape, commercial, industrial medical, and residential applications, based on functionality, quality, aesthetics, and budget.
Based in Dongguan, China with a plant area of 3000 sqm, our in-house design and engineering team continues pushing the innovation boundary across the full spectrum of power transformers. Our advanced manufacturing, customer support capabilities, and superior R&D enable us to create and tailor power supply and transformer solutions to address the needs of an ever-evolving commercial and residential market.
We supply our products to the Lighting (industrial and residential), Machinery, Automation, Chemical, Medical, Entertainment, Architectural, and Commercial markets, to name just a few. Today our power supply transformers can be found in hundreds of thousands of installations, driving millions of projects worldwide.

---
