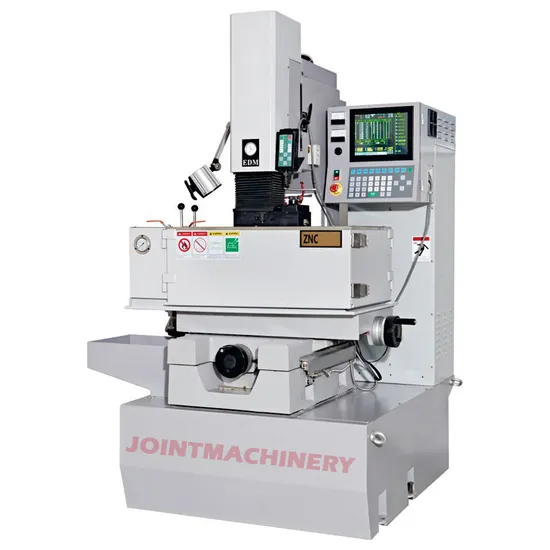

Znc EDM Machine High Precision Spark Erosion EDM Sinker Machine Znc-350/435/450

Product Description

√ Suitable for ultrahigh precision molds and parts processing
√ U-class high quality ultra-fine surface processing,low loss,high finish.
√ Used for machining complex curved parts,precision connectors,precision machining of precision parts,solving complex machining problems.
√ Achieve large-area and high-glossuniform processing,small-area PIKA surface processing.
CNC EDM Machine

Model	Unit	ZNC-350	ZNC-435	ZNC-450
Travel	mm	X=300;Y=200	X=400;Y=300	X=450;Y=350
		Z=180;Z1=200	Z=200;Z1=200	Z=200;Z1=200
Table size	mm	550*280	650*320	700*400
Electrode load	kg	80	130	180
Working load	kg	600	1100	1200
Max workpiece size	mm	720*490*450	840*550*530	1100*680*580
Oil tank groove diameter	mm	960*530*420	1100*600*400	1150*720*450
Oil tank outer diameter	mm	900*1150*450	1150*900*580	1150*900*500
Oil tank capacity	L	360	420	480
Machine weight	KG	900	1500	1700

Model	Unit	ZNC MACHINE			CNC MACHINE
Control mode & Axis No.		NC with close circuit / Single Z axis control			NC with colse circuit / X,Y and Z axis control
Min setting value	mm	0.005 (0.001)			0.005
Max setting value	mm	9999.995 (9999.9999)			9999.995
Coordination system		(INC), (ABS)			(INC), (ABS)
Screen		15''TFT			15''TFT
Control system		Industrial PC			Industrial PC
Moving velocity of controller		0.005mm (Per Unit)*1, *5, *10			0.005mm (Per Unit)*1, *5, *10
Procedure in store		0-999 groups			0-999 groups
Max current for processing	A	50	75	100	50	75	100
Input rated power	Kva	5	6	10	5	6	10
Max cutting processing speed	mm2/min	360	560	700	360	560	700
Consumption of the electrode head	%	<0.2			<0.2
Best surface rough	μmRa	0.25			0.25
Dimension	mm	620*860*1850			620*860*1850
Net weight	kg	210			215

EDM machines are mainly used to process various high-hardness materials (such as cemented carbide and hardened steel, etc.) and complex-shaped molds and parts, as well as cutting, grooving and removing tools (such as drills and taps) broken in workpiece holes.

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.
Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
