Automatic Label Flexo Printing Machine with Laminating+Rotary Die Cutting Slitting+Sheeting Station/Paper Cup/ Film Sticker Flexographic Printer Cutter Slitter

Product Description

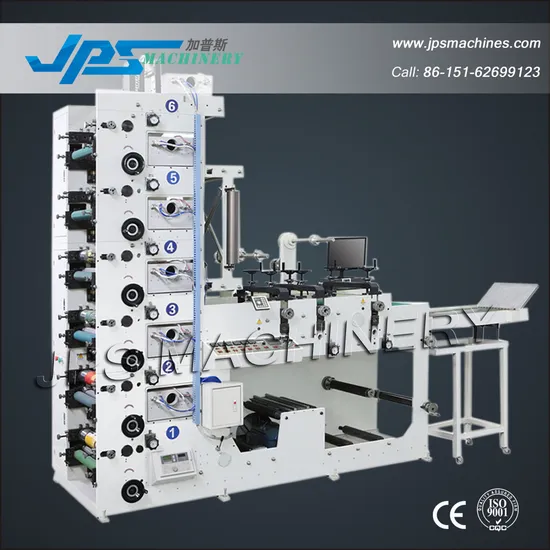

JPS480-6C-B Automatic Self-adhesive Label Flexo Printing Machine with Laminating+Rotary Die Cutting Slitting+Sheeting Station/Paper Cup/ Film Sticker Flexographic Printer Cutter Slitter
Main Technical Parameter:

Specification	JPS480-6C-B
Printing speed (m/min)	60
Printing color (colors)	6
Max. paper width (mm)	480
Max. printing width (mm)	470
Max. Unwinding diameter (mm)	600
Max. rewinding diameter (mm)	600
Printing perimeter (mm)	175-380
Registration accuracy(mm)	±0.1
Voltage (v)	380±10%
Total power	12.5kw
Weight of machine (kg)	3800/3500
Dimension (mm)	4300*1300*3300

Characteristic:
1. Adopt the ceramic anilox roller to spread ink.
2. Unwinding and rewinding are controlled by magnetism power brake, clutch. (or by automatic tension controller of Mitsubishi , made in Japan).
3. Printing unit adopt 360º for registration.
4. Printing unit have one infrared to dry the device group each.
5. The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being black to be dry.
6. The main motor is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process
8.This kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
Standard Configurations:

Standard configurations		Option
6×ceramic anilox roller	AC contactor	Corona treatment
12×printing roller	Variable frequency	Plate mounting
Magnetic powder brake	Push button	Video system
Magnetic particle clutch	Control panel	Web guide
1×Unwinding tension controller	Hall switch	Lamination unit
1×Rewinding tension controller	Main motor	Rotary die cutting unit
6×Infrared dryer	2×shaft	Dividing cutting device
6×ink roller	a turn bar	UV dryer
Breaker	A lamination station	Cold foil
Temperature control	A rotary die cutting station

Optional configuration:
1. web guiding
2. plate mounting with microcomputer display screen
3. computer monitor
4. turn bar
5. slitting station
6. rotary die cutting station
7. laminating
8. UV dryer
9. Corona treatment
10. Cold foil
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
JPS480-6C-B Printing Samples:
JPS480-6C-B Machine Versions:
JPS Factory Show :
Customer Show:
JPS Main Machine Catalogue:

---
