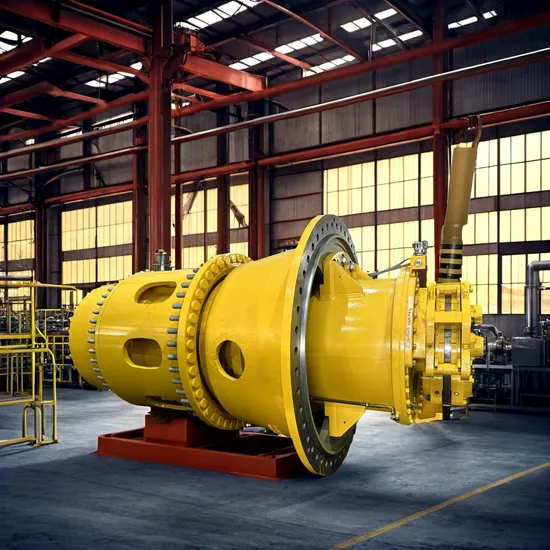

130/150t Wheel Reducer for Dump Truck

Product Description

Product Introduction Brief introduction:
NW130The sophisticated design of the wheel side reducer showcases an innovative sun wheel, elegantly complemented by three meticulously aligned small rows, ensuring seamless performance and unmatched efficiency.Star double toothThis cutting-edge configuration includes wheels and a torsion tube, forming a comprehensive system that flawlessly merges both internal and external meshing, exemplifying engineering excellence.NWCelebrated for its brilliantly crafted planetary gear transmission reduction mechanism, this product stands at the forefront of industry innovation.
Structural features:
1.The uniquely designed sun wheel floats with precision, securely connected by a spline to the motor shaft at one end. The other end achieves automatic positioning through masterful meshing with three large planetary wheels, strategically spaced around the circumference. This ensures optimal meshing backlash and tooth top clearance, elevating performance and reliability.
2.The robust design features three twin large planetary wheels, dynamically driven by the sun wheel. These twin wheels are firmly mounted on frame bearings and mesh skillfully with the internal teeth of the torque tube at the opposite end. The torsion tube is seamlessly integrated with the hub, creating a unified structure that allows the hub's two centripetal thrust bearings to rotate in perfect harmony around the frame.
3.The hub is crafted with meticulous precision to offer a solid mounting surface for the tire. Ingeniously, the solar wheel shaft is designed to float when encountering radial force, ensuring the precise transmission of the planetary gear mechanism within the gearbox. This floating action during operation promotes balanced load distribution across the planetary transmission, significantly enhancing the gearbox's longevity.
Product Parameters
130t/150t Wheel Reducer
Rated Input Torque: 5457N.M
Maximum Input Torque: 15300N.M
Ratio: 30.36
Weight: 5500KG
Application: off-highway truck of 130t, 150t Detailed Photos
Company Profile
Exhibitions
Certifications
FAQ 1. Are you a manufacturer or a trading company?We are a reputable factory located in Jiangsu, China, with two decades of extensive experience, sprawling over 70,000 square meters.
Our facility is equipped with complete facilities, including advanced 3D quality inspection equipment, a robust ERP system, and 300 precision machines, ensuring top-notch production quality.
Should you require, we can furnish you with material certificates, sample quality inspections, and other pertinent reports.
2. How to obtain a quote?
Please provide detailed drawings in formats such as PDF, STEP, IGS, or DWG. Include specifications such as quality benchmarks, delivery dates, materials, quantities, surface treatments, and any other relevant information.
3. Can you provide samples before mass production?
Certainly! A sample fee is applicable, but it is refundable upon commencement of mass production, whenever feasible.
4. How do you ensure quality control?
(1) Material Inspection: We meticulously inspect material surfaces and approximate dimensions to maintain quality standards. (2) Initial Production Inspection: We verify critical dimensions during mass production to ensure adherence to specifications.(3) Sampling Inspection: We conduct thorough checks of product quality before they are delivered to the warehouse.(4) Pre-shipment Inspection: A dedicated QC assistant performs a comprehensive 100% inspection to ensure impeccable quality prior to shipment.5. Which countries are your main markets?Our prominent markets include North America, Europe, Oceania, and Asia, reflecting our global reach and esteemed clientele.

---
