Servo Electronic Universal Tensile Testing Machine Price/ Textile Tensile Strength Tester/ Metal Testing Machine

Product Description

Tensile Testing Machine Universal Tensile Machine
Product Description Universal Tensile Testing Machine is suitable for rubber and plastics, paper products, color printing packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wire and electronics and other industries. It can test the physical properties of various materials, finished products and semi-finished products, and can choose various fixtures for tensile, compressive, tensile, compressive, bending, tearing, peeling, adhesion, shearing and other tests.
This machine is a newly designed and developed microcomputer type tensile (compression) force testing machine. The company has completely changed the shortcomings of the traditional material testing machine, which is cumbersome, complicated in operation, and single in performance. The data acquisition and operation speed is high, the product performance is stable and reliable, the measurement accuracy is high, and the operation is simple and easy to understand.
Product Features:
★ Servo Motor Control
★ The machine includes a thermal printer, which can automatically output the test results;
★ Units can be switched arbitrarily: Strength: kN/N/kgf/gf/t/lbf;
★ Displacement: mm/cm/in;
★ Automatic homing function;
★ The overload protection function can be set;
★ Various test methods such as fixed load and positioning displacement.
★ The height and angle of the control screen are adjustable, which can better match the usage habits of various groups of people.
Primary Features: Measure the displacement by the imported photoelectric encoder. The controller adopts an embedded single-chip microcomputer structure. There is powerful measurement and control software inside the machine which integrates the function of measurement, control, calculation, and storage into one system. It can also carry out the automatic calculation of stress, elongation (need to be equipped with an extensometer), tensile strength and elastic modulus, and even statistics of results. Moreover, it has the function of recording the maximum force, fracture point, force, and elongation at the specified point. It is also characterized by the dynamic display of the test process and test curve by the computer which is used for the data processing. Once the test is completed without any error, you can re-analyze and re-edit the data by enlarging the curve in accordance with the graphic processing module. Finally, you can print the report which will denote that the performance of the product has met the international advanced level.
Application Industry:
The tensile tester is extensively used across a wide range of industries, such as measurement and quality inspection, rubber and plastic, metallurgy and steel, machinery manufacturing, electronic appliances, automobile production, textile and chemical fiber, and commercial arbitration, and technical supervision departments, petrochemical and so on.
Product Parameters

Capacity selection	10,20,50,100,200,300kg optional
Display	Touch screen display
Force measurement accuracy	better than ±1.0%
Force resolution	1/10,000
Effective force range	1~100%F.S
Displacement resolution	0.001mm
Displacement indication accuracy	better than ±1.0%
The test speed range	100~500mm/min,can be adjusted arbitrarily
The maximum test stroke	up to 600mm, excluding clamps
Effective test space	120mm front and rear
Force unit switching	kgf,gf ,N,kN,Ibf
Stress unit switching	MPa,kPa,kgf/cm2,Ibf/in2
Deformation unit switching	mm,cm,in
Stop mode	Upper and lower limit safety setting, emergency stop button, test piece damage detection
Size	50×50×160cm(W×D×H)
Weight	About 75kg
Power	High-quality stepper motor/servo motor
Power supply	AC220V,50/60Hz,10A or specified

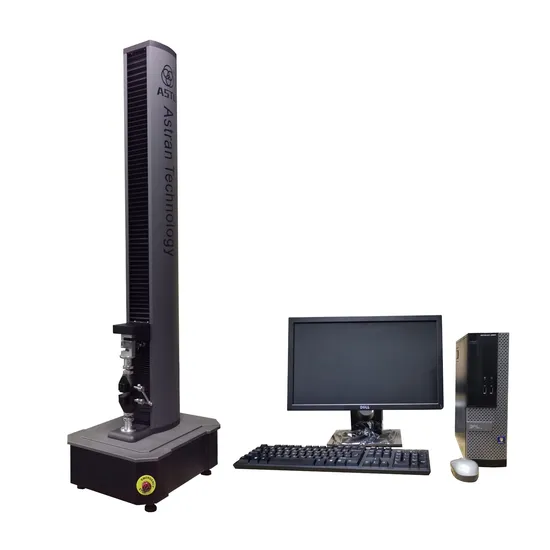

Product Display Computer Control Type:
Microcomputer Control Type:

Testing Fixtures	Customize different fixtures according to the products
Applications	Bend Test,Bond Test,Compression Test,Fracture Test,Indentation(IFD),Peel Test,Shear Test,Tensile Test, Stress Relaxation%Creep
