Drill Press Machine (ZB5032G/ZB5032GP) Radial Drill Machine

Product Description

Drill Press Machine(ZB5032G/ZB5032GP)Radial Drill Machine
Features:
Spindle auto feed with variable feeding rate
High spindle rigidity
Threading by automatic switching of the left turns
The spindle head, column, table and column base made of the highest quality of seasoned castings
Spindle and transmission shafts of hardened and heat treated steel
Built-in led lamp
High engine power
A large spindle stroke
Readable control panel
Working table manually lifted with 360 rotation and assembly grooves
Belt transmission cover equipped with an extreme safety switch
Adjustable drill chuck with key and mounting on the Morse taper
Technical parameter:

Model	ZB5032G	ZB5032GP
Max.Drilling capacity	32	32
Max.Tapping capacity	M24	M24
Diameter of column	100mm	100mm
Spindle travel	150mm	150mm
Spindle feed rate	20-204mm/min	20-204mm/min
Distance spindle axis to column	265mm	265mm
Max.Distance spindle nose to table	820mm	820mm
Max.Distance spindle nose to base	1235mm	1235mm
Spindle Taper	MT3	MT3
No. of Speeds	5 steps	5 steps
Spindle speeds range	280~1875r/min	280~1875r/min
Dimension of workable surface	380x400mm	380x400mm
Dimension of base	310x380mm	310x380mm
Overall height	1130mm	1130mm
Main motor	1.5 kw	1.5 kw
Coolant motor	/	0.04kw
Feed motor	90w	90w
millart.en.made-in-china.com weight	310kg	310kg
Packing size	104x64x205cm	104x64x205cm

Standard accessories:

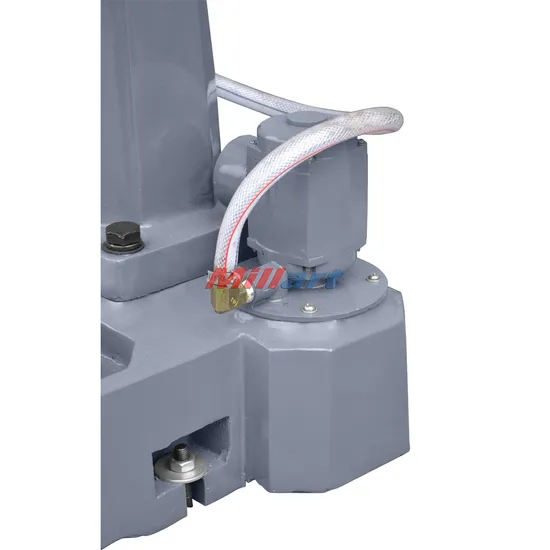

5032GP with coolant pump
Work lamp
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice

---
