Basic Info.
Carbonizer Type

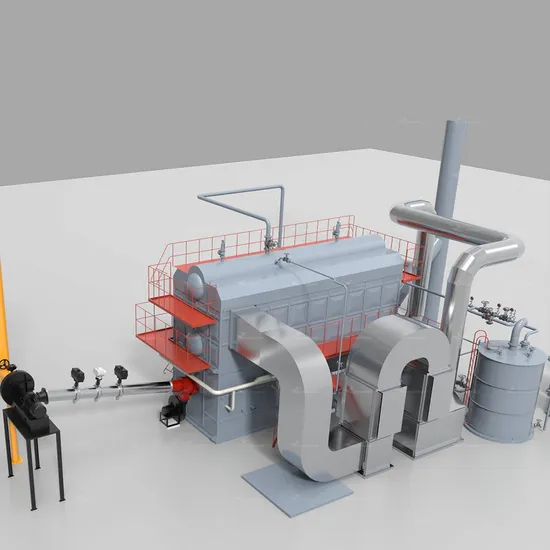

Downdraft Fixed Bed Carbonizer
Range of Biomass Input
Rice Husk, Straw, Bagasse, Peanut Shell, Wood Chip
Size Requirement
Diameter:20-80mm;Length:20-80mm
Moisture Requirement
≤15-20%
Biomass Consumption(Kg/H)
1500-2000
Gas Production(Nm³/H)
2500-3000
Heat Value of Gas
1000-1100 Kcal/Nm³
Biochar Output (Kg/H)
≤500
Heat Output(Kcal/H)
≤2,750,000
Transport Package
Package for Biomass Downdraft Fixed Bed Carbonizer
Product Description
Pyrogreen's biomass energy conversion technologycan serve as a solution to the current problem.
Pyrogreen Energy is a leading company in the manufacturing of eco-friendly carbonization & torrefac.tion systems and providing biochar & biocoal solutions for the recycling of biomass residuals. Ourmission is to create and deploy biorenewable technologies that enhance soil fertility and combatclimate change through CO,sequestration.
We support our clients in making use of biomass waste, boosting efficiency, and generating extrarevenue while simultaneously reducing carbon emissions.
Pyrogreen's solution
As a leader in advanced thermal processing systems, Pyrogreen provides custom rotary kilns carbon.ization system and custom screw conveyor carbonization system for the production of biochar froma variety of sources. Sometimes referred to as torrefaction, the pyrolysis of biomass into a highguality biochar product is a technical endeavor, reguiring advanced knowledge of thermal processing principles. Pyrogreen process experts can work with you to design this system around youlunique source of material.
Advantage
(1)Modular Concept,easy transportation and installing.
(2)No tar and liquid waste production.
(3)Fully Automation.
(4) Extremly Low NOx,CO, Particle Emission.
(5)High thermal efficiency and high biochar quality and quantity production.
>>
