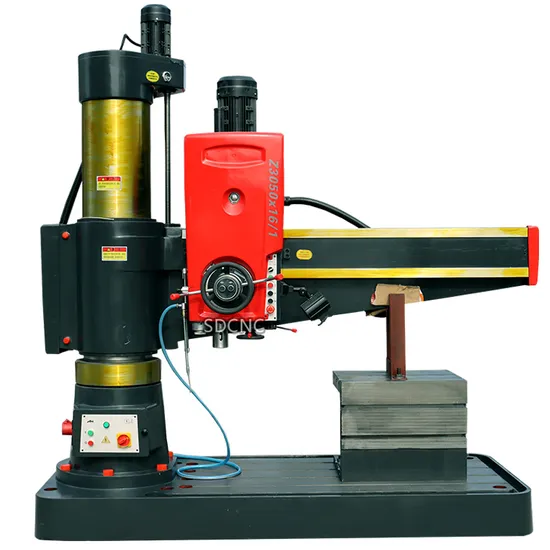

Z3050X16 Hydraulic Mechanical Metal Radial Drilling

Product Description

Z3050X16 Hydraulic Mechanical Metal Radial Drilling

SPECIFICATIONS	Z3050×16
Max.drilling dia (mm)	50
Distance from spindle nose to table surface(mm)	320-1240
Distance between spindle axis and column surface (mm)	350-1640
Spindle travel (mm)	315
Spindle cone(MT)	5
Spindle speeds range (r.p.m)	25-2000
Spindle speed step	16
Spindle feeding range(r.p.m)	0.04-3.2
Spindle feeding step	16
Rocker rotary angle (°)	±90°
Main motor power (kw)	4
Movements motor power (kw)	1.5
Weight (kg)	3500
Overall dimensions (mm)	2500×1060×2800

Product Description
The main performance characteristics:Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Detailed Photos
Product Parameters

SPECIFICATIONS	Z3050×16
Max.drilling dia (mm)	50
Distance from spindle nose to table surface(mm)	320-1240
Distance between spindle axis and column surface (mm)	350-1640
Spindle travel (mm)	315
Spindle cone(MT)	5
Spindle speeds range (r.p.m)	25-2000
Spindle speed step	16
Spindle feeding range(r.p.m)	0.04-3.2
Spindle feeding step	16
Rocker rotary angle (°)	±90°
Main motor power (kw)	4
Movements motor power (kw)	1.5
Weight (kg)	3500
Overall dimensions (mm)	2500×1060×2800

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.

---
