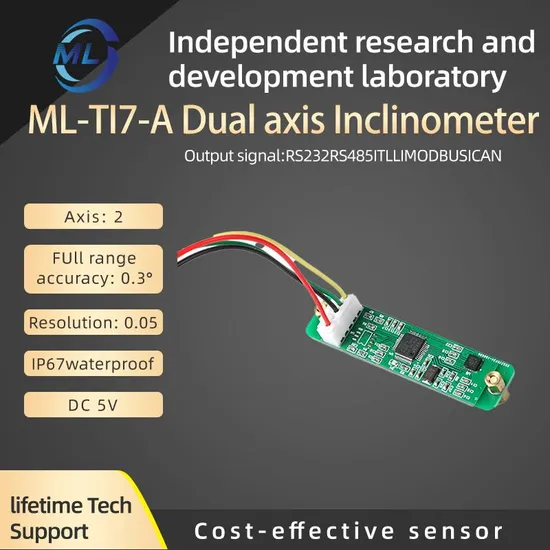

Small Size OEM Single Circuit Board Biaxial Tilt Inclinometer Wide Operation Temperature

Product Description

Parameter	Conditions	MLTI7-A-10	MLTI7-A-30	MLTI7-A-60	MLTI7-A-90	Unit
Measuring range		±10	±30	±60	±90	°
Measuring axis		X, Y	X, Y	X, Y	X, Y
Zero temperature drift	-40~85°	±0.05	±0.05	±0.05	±0.05	°/ºC
Sensitivity temperature coefficient	-40~85°	≤200	≤200	≤200	≤200	ppm/ºC
Frequency response	DC response	100	100	100	100	Hz
Resolution	Bandwidth 5Hz	0.05	0.05	0.05	0.05	°
Accuracy	-40~85ºC	0.3				°
Long term stability	-40~85ºC	<0.32				°
Power-on start time		0.2				s
Response time		0.01				s
Output rate	5Hz, (15Hz, 35Hz, 50Hz, 100HZ can be set) (RS485 does not have this function)
Output signal	RS232/RS485/RS422/TTL/PWM/ CAN/(MODBUS Optional)
Average working hours	≥55000 hours/time
Impact resistance	2500g, 0.5ms, 3 times/axis
Anti-vibration	10grms,10~1000Hz
Insulation resistance	≥100MΩ
Waterproof level	IP67
Cable	Standard 1.5 meter-length, wear-resistant, oil-proof, wide temperature, shielded cable 4*0.2mm2
Weight	7g (excluding packaging box)

COMPANY INFORMATION
ML is a national high-tech enterprise that has been focusingon using inertial navigationand information fusion technology to solve the accuracy and real-time needs ofvarious types ofmoving objects for navigation information such as position and attitude. Our products coverhigh-tech sensor products from MEMS industrial-grade inertial navigation chips to high-precisioninertial navigation modules, which are mainly used in autopilots ofunmanned systems (includingautopilot/drones/unmanned ships) , satellite tracking,robots, intelligent pursuit, high-speedrail/bridge/dam mapping and other fields.
ML has accumulated strong product R&D and innovation capabilities through years ofaccumulation in chip design, process manufacturing, industry algorithms and calibration capabilitiesin the MEMS inertial industry. At present, the company has obtained several invention patents andsoftware copyrights, covering MEMS inertial navigation chips and modules, and has successfully usedthese patents to realize product transformation.

---
