1/C Cu 15kv 175 Trxlpe 100% PVC Mv-105 Mv Power Cable

Product Description

Standards
ASTM B3 Standard Specification for Soft or Annealed Copper Wire ASTM B8 Concentric-Lay-Stranded Copper Conductors UL 1072 Medium-Voltage Power Cables UL 1685 FT4-ST1 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger) CSA C22.2 No.230 Tray Cables - Rated TC-ER (1/0 AWG and Larger) CSA C22.2 No. 2556 / UL 2556 Cable Test Methods CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test (1/0 and Larger) AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV Application
15KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions.

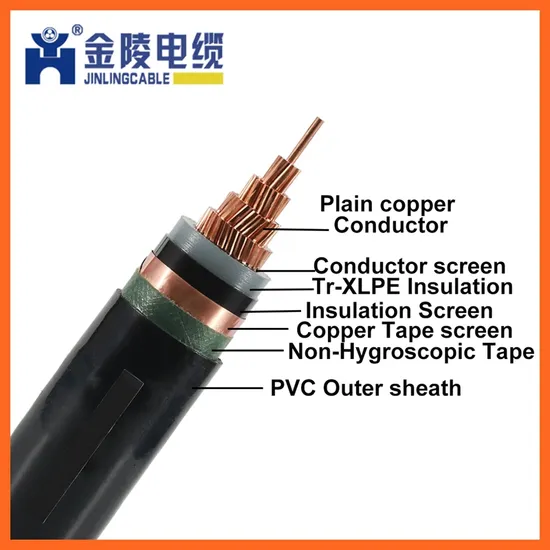

Construction
Conductor:Class B compressed stranded bare copper per ASTM B3 and ASTM B8
Conductor Shield:Semi-conducting cross-linked copolymer
Insulation:175 Mils Tree Retardent Cross Linked Polyethylene (TRXLPE) 100% Insulation Level,
Insulation Shield:Stripable semi-conducting cross-linked copolymer
Copper Tape Shield:Helically wrapped 5 mil copper tape with 25% overlap
Overall Jacket:Polyvinyl Chloride (PVC)
Parameter:

Cond. Size	Diameter Over Conductor	Diameter Over Insulation	Diameter Over Insulation Shield	Jacket Thickness	Approx. OD	Approx. Weight	Max Pull Tension	Min Bending Radius
AWG/Kcmil	inches	inches	inches	mils	inches	lbs./MFT	lbs.	inches
2	0.283	0.67	0.73	65	0.88	514	531	10.6
1	0.322	0.709	0.769	80	0.949	610	670	11.4
'1/0	0.362	0.749	0.809	80	0.989	699	845	11.9
'2/0	0.405	0.792	0.852	80	1.032	807	1065	12.4
'3/0	0.456	0.843	0.903	80	1.083	942	1342	13
'4/0	0.512	0.899	0.959	80	1.139	1107	1693	13.7
250	0.558	0.954	1.014	80	1.194	1254	2000	14.3
350	0.661	1.057	1.117	80	1.297	1619	2800	15.6
500	0.789	1.185	1.245	80	1.425	2151	4000	17.1
750	0.968	1.373	1.433	80	1.613	3024	6000	19.4
1000	1.117	1.522	1.582	110	1.822	3974	8000	21.9

---
