Flowmeter Is Used in Application Fields Like Petroleum, Diesel and Sewage.

Product Description

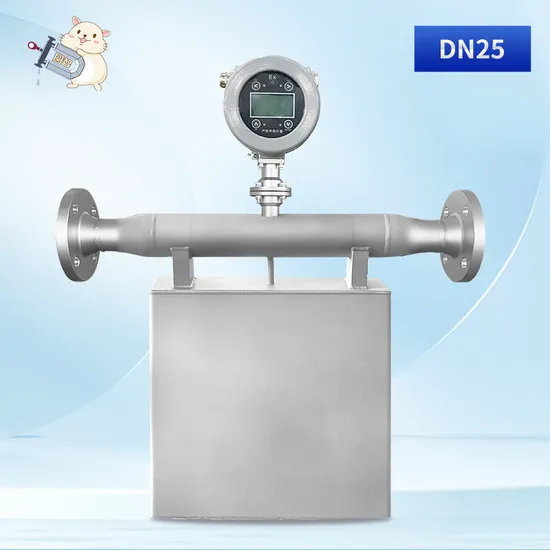

Detailed Photos Coriolis Mass Flowmeter
• Trade transfer • Process measurement • Bidirectional measurement
Self-developed Advanced in function
Directly display the mass flow rate, total mass flow, volumetric flow rate, total volumetric flow, medium density, medium temperature of the measured fluid and abnormal alarm
Product structure
The YMF series mass flow meter of Qingdao Yuanzhi mainly consists of two parts: the transmitter and the sensor
Application scenarios
Applications in process control;Applications in quantitative vehicle loading;Applications in vessels;In petroleum and chemical industry;
It is widely applied in food processing, pharmaceuticals, water supply and scientific research
Product Parameters Mass flow accuracy

Mass flow accuracy	Within the range ratio of 20:1	±0.1%
Mass flow repeatability	Within the range ratio of 20:1	0.03%
Volume flow accuracy	Within the range ratio of 20:1	±0.1%

Range of mass flow rate velocity

Product model	Mass flow range
YMF015(DN15)	150~3000kg/h
YMF025(DN25)	1250~25000kg/h
YMF050(DN50)	2750~55000kg/h
YMF080(DN80)	7500~150000kg/h
YMF100(DN100)	9000~180000kg/h
YMF150(DN150)	17500~350000kg/h

Density and temperature accuracy

Density	Density measurement range	0.2~2.0 g/cm3
	Density accuracy	±0.001 g/cm3
	Density repeatability	0.0005g/cm3
Temperature	Temperature measurement range	-200~204 ºC
	Temperature accuracy	≤±0.2 ºC
