Low Cost CNC Plasma Cutting CNC Lathe Ck6136A-2

Product Description

NOTE: The currency exchange rate fluctuates greatly,
please consult customer service for the best price.

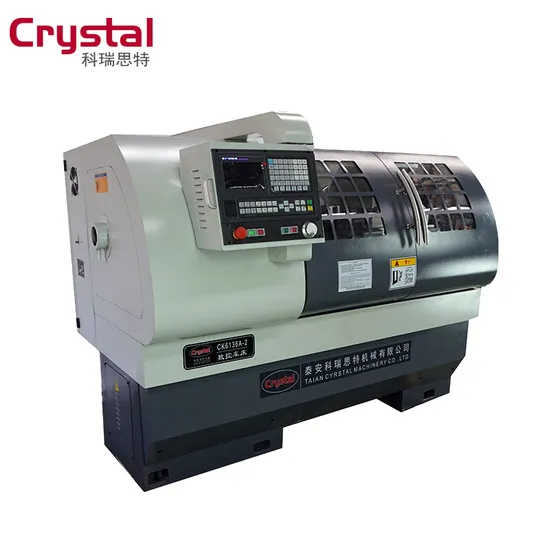

Low Cost CNC Plasma Cutting CNC Lathe CK6136A-2
Main Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety

CK6136A Specification:

Max. swing over bed	mm	Φ360
Max. swing over cross slide	mm	Φ190
Max. processing length	mm	500/750/1000
Spindle Taper	#	MT6
Thu-hole dia. of spindle	mm	Φ60
Max. spindle speed	rpm	150-2500
Chuck size	mm	200
Spindle motor	kw	5.5
X/Z axis Position accuracy	mm	0.01/0.015
X/Z axis repeatability	mm	0.012/0.013
X/Z axis feed motor torque	N.m	X:4 Z:6
X/Z axis fast feeding speed	Mm/min	X:6 Z:8
Tailstock sleeve dia.	mm	Φ60
Tailstock sleeve travel	#	120
Tailstock sleeve taper	#	MT4
Tool post type	#	4 -piece electric tool post
Tool bar section	mm	20*20
Machine dimension (L×W×H)	mm	1850/2120/2370×1400×1700
N.W	Kg	1500/1650/1750

Standard configuration:
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50Hz
Optional configuration:
1.Siemens system /Fanuc system
2.Hydraulic chuck/ pneumatic chuck
3.Hydraulic tailstock/ pneumatic tailstock
4.6-piece electric tool post/8- piece electric tool post/ Gang type tool
5.Auto bar feeder

---
