Pet Bottle Crushing Washing Drying Production Line

Product Description

PET bottle washing line by different capacity of 10kg/h to 2000kgs/h according to customer's requirement .
1.1. Raw material & Final product:

Raw material & formulation	PET bottles(dirty)
Final product & Output capacity	PET clean and dry flakes ≥500kg/hr
Description of final product	Flake size: 16-20mm

1.2 Work condition

Warehouse/Workshop	Dimension (M*M*M):45(L)×5.5(W)×4(H); we can dispose the whole production line according to customer's plant drawing Weight: around 19500kg Crane: Machine positioning(provide by customer).
Power supply	3-phase, 380/480 V, 50/60 Hz;
Wire/cables(provide by customer)	Wires/cables from power supply to control cabinet of this production line; all electrical cables from control cabinet to each machine.
Water supply hose/pipe (provide by customer).	Water supply to machines and pools

1.3 Energy consumption

Installation power	185KW (Actual power consumption percentage: 70%) (not include steam washer's heating power)
Water supply	Consumption: 6-8ton/h (we can offer water treatment layout or equipment) Pressure: 0.4Mpa
Manpower	3-4 Persons

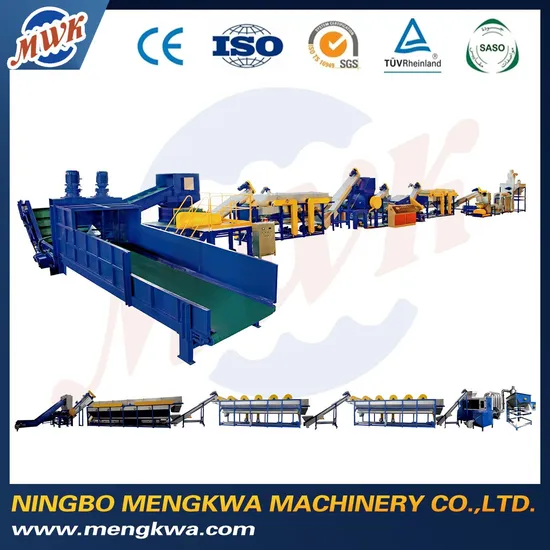

2. Flow line picture
3. Configuration table:

No.	Machine	Qty.	No.	Machine	Qty.
1	Belt conveyer	1set	11	Screw conveyer	1set
2	Label Scraping Machine	1set	12	High speed friction washer	1set
3	Manual Separating Table	1set	13	Screw conveyer	1set
4	Metal detector	1set	14	Floating washer	1set
5	Belt conveyer	1set	15	Screw conveyor	1set
6	Crusher PC 800	1set	16	Dewatering machine	1set
7	Screw conveyer	1set	17	Drying system	1set
8	Floating washer	1set	18	Label separator by air	1set
9	Screw conveyor	1set	19	Storage hopper	1set
10	Steam washer	1set	20	Electric elements	1set

Ningbo Mengkwa Machinery Co.,Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
If you want to know any information about us and machine or equipment, please contact with us at any time .
Ningbo Mengkwa Machinery Co. Ltd
Ningbo, China


web: mengkwa.en.made-in-china.com
mengkwa.en.made-in-china.com

After-sale service
1. 24 hours technical support by email, call, video.
2. Warranty for one year after 12 months of shipment
3. Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
Terms of payment
1.after receiving the deposit 40%, our company will arrange production;
2.After the customer check and accept compression machine, before delivery, customer need to pay off the balance payment;

---
