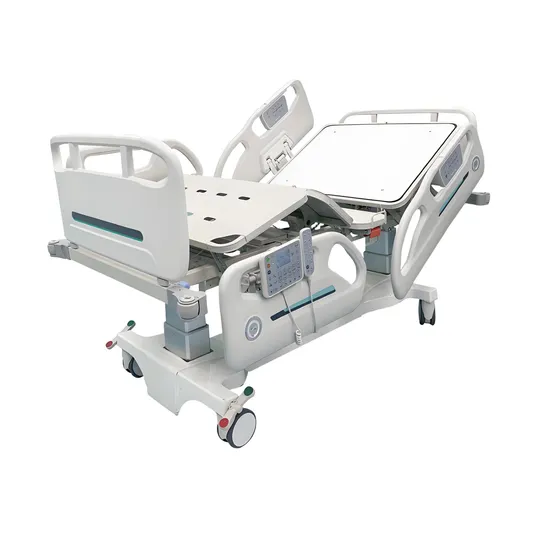

Medical New Design Seven Functions ICU Motorized Hospital Bed with Thrombolysis Function

Product Description

Product NameMedical new design seven functions ICU motorized hospital bed with thrombolysis function
The bed functions:
1. With weighing function
2. Electric and manual CPR for emergency resuscitation
3. Guardrail adjustment: Damped raising/lowering for stable
4. Guardrail: HDPE material,it's height: 400mm( from the bed surface), with angle indicator(30° and 45° special markings); long guardrail length: 1080mm; short guardrail length: 810mm
5. Headboard/Footboard: HDPE material
6. The bed could take x-ray
7. Built-in bed exit alarm: Activates upon patient departure detectionProduct Parameters

Overall Bed size	2240x1060mm
The bed can be extended by 240mm
Bed panel size	1950*900mm
Height adjustment	500-900mm
Back up	0-70°±5°
Leg up	0-40°±5°
Calf board angle(relative to bed frame)	0-20°
Height	500-900mm
Trendelenburg angle and reverse trendelenburg	0-14°±2°/0-14°±2°
Lateral tilt	0-16°±2°/0-16°±2°
Guardrail height	400mm(from the bed surface)
Long guardrail length	1080mm
Short guardrail length	810mm
Guardrail material	HDPE;antibacterial and UV resistant
Load capacity	240kg
Weighing accuracy value ≤ 0.2kg, Weighing range 0-150kg, high precision of weighing system
Castors	φ125mm(imported)

Detailed Photos1. Headboard and footboard
Adopting antibacterial and environmentally friendly HDPE material for blow molding, the surface is smooth and easy to clean, with strong impact resistance, heat resistance, low temperature resistance, chemical resistance, and excellent electrical performance2.Segmented guardrailThe guardrail is equipped with dampers for easy and safe operation, and the outer side is equipped with ball type angle indicators for medical staff to conveniently, quickly, and intuitively place patients in a comfortable position3.Widen and stabilize the bed surfaceAdopting a one-time laser cutting and forming porous design of cold-rolled steel plate, the back plate is made of breathable X-ray transparent material, and patients can directly take X-ray images without changing the bed4.Universal center console castersThe wheel surface is made of TPR wear-resistant material, and the caster frame is made of aviation aluminum through one-time die-casting. It is equipped with fully enclosed self-lubricating bearings of professional quality, which are quiet, wear-resistant, hard and lightweight5.Electric/Manual CPROne click control of electric CPR, simple and convenient. Manual CPR can quickly return the backrest in case of insufficient power to ensure patient safety6.Anti-collision wheelThe four corners of the bed are equipped with anti-collision wheels, which can effectively prevent the bed from directly colliding with flat obstacles such as elevators and door frames during operation and smooth transition7.Backboard falling backThe bed back panel adopts a double support unloading structure, and the back panel has a retraction function to reduce the pressure on the patient's abdomen. The back box has a damper to prevent the box from falling rapidly and causing dangerFunction display Company ProfileFAQQ: Do you have CE,FDA, ISO13485?A: Yes,our products are approved by CE, FDA, lSO13485O:Is OEM &ODM available in your factory ?A: Yes, you just offer us necessary documents and then we will produce the products as your reguirementsQ: What is your Payment term?A: 1.100% deposit T/T in advance(order value <8000 USD) ; 2. T/T:30% deposit by T/T, 70%balance by T/T before shipment 3. L/C at sight 4.Trade term:EXW, FOB Shanghai or ClF&CFRQ: What is your Packing details?A:1.Wooden case or carton package, standard export packages 2.All of the productions are inspected carfully by Qc before delivery.Q: What is your Delivery time?A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 7-10 days after receiving the deposit; If we don't have the products in stock, we will arrange the producton right now, the delivery time will be 15-20 days, it depends on the quantity order.Q: What is your Min.order?A: Negotiable

---
